Overview - Bumper Carrier

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

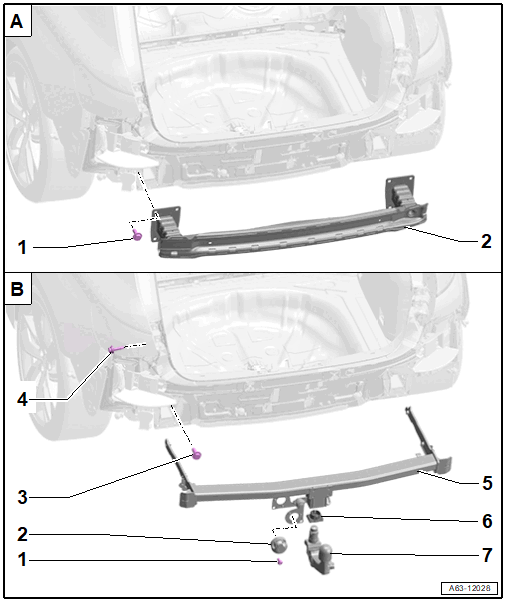

Fig 1: Exploded View Of Rear Bumper Carrier

Courtesy of AUDI OF AMERICA, LLC

A - Bumper Carrier, Equipment Version without Trailer Hitch
1 - Bolt
- Quantity: 4
- 30 Nm
2 - Bumper Carrier
- Removing and installing. Refer to BUMPER CARRIER, REMOVING AND INSTALLING, WITHOUT TRAILER HITCH .
B - Bumper Carrier, Equipment Version with Trailer Hitch
1 - Bolt
- Quantity: 2
- 2.5 Nm
2 - Trailer Socket -U10-
- Removing and installing. Refer to Trailer Hitch .
3 - Bolt
- Quantity: 2
- 30 Nm
4 - Bolt
- Quantity: 2
- Replace after removing
- 60 Nm +90°
5 - Bumper Carrier
- Removing and installing. Refer to BUMPER CARRIER, REMOVING AND INSTALLING, WITH TRAILER HITCH .
6 - Protective Cover
7 - Trailer Hitch
- Removable
