Forced Air Extraction Of Passenger Compartment, Checking, SPORTBACK
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

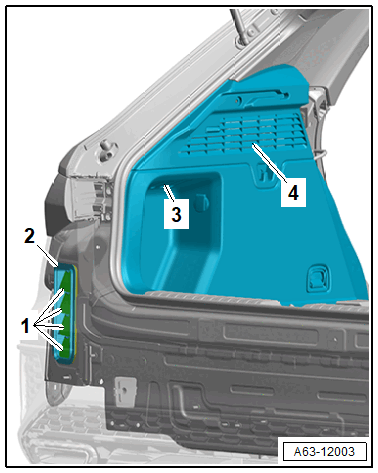

-- The vent openings -3 and 4- must not be closed or concealed, otherwise it may lead to problems with the vehicle interior ventilation.
-- Check the left and right vent frame -2- for flow.
- The sealing lips -1- in the vent frame must be clear and close autonomously.
- The vent frame must be installed on the correct side.
- The vent frames must not be concealed.
