Bumper Cover Trim, Removing And Installing, Center, RS3: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING, RS3 .

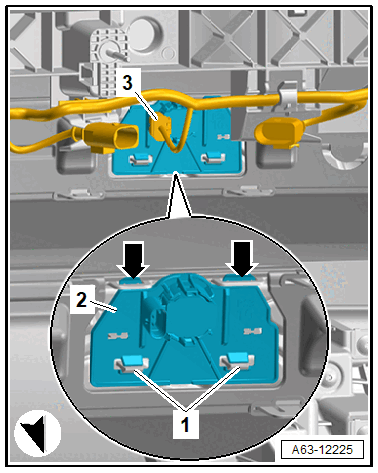

-- Disconnect the connector -3-.
-- Release the retainers -1-, disengage the mount -2- at the surface -arrows- and remove.

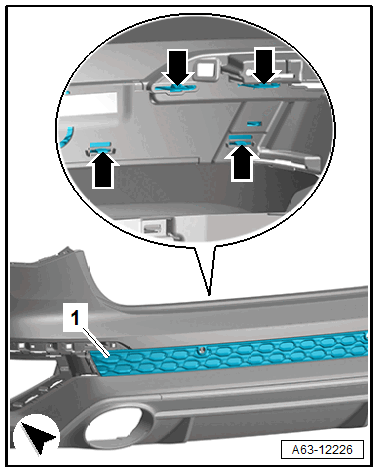

-- Release the retainers -arrows- and remove the trim -1-.
