Bumper Cover Lower Section, Removing And Installing, A3/S3: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

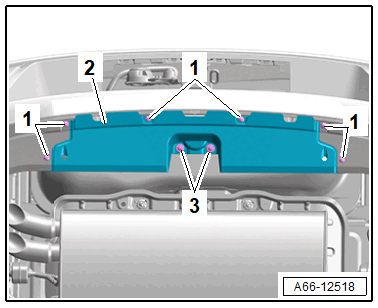

-- Sedan: remove the bolts -1- as well as the nuts -3- and the underbody trim panel -2-.

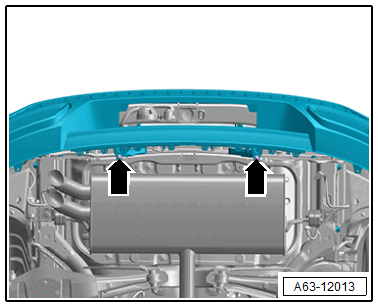

-- Remove the bolts -arrows- on the lower section of the bumper cover.

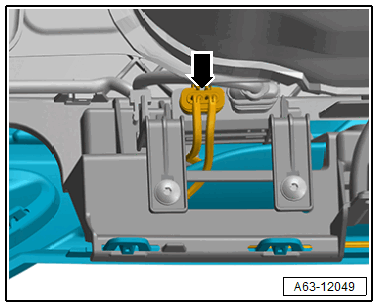

-- If equipped, disconnect the connector -arrow-.
Basic/Lines:

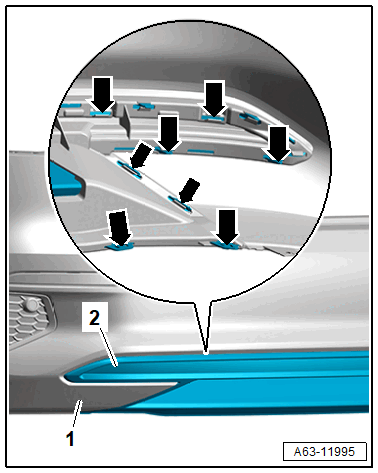

-- Release the retainers -arrows- and remove the lower section -2- from the bumper cover -1-.
S line:

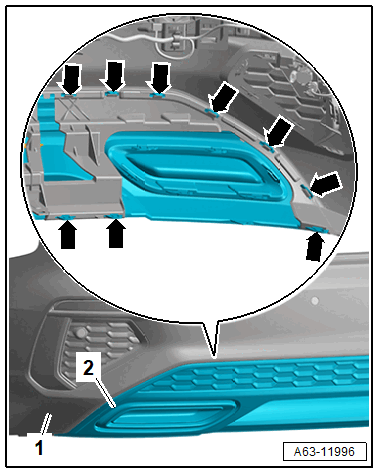

-- Release the retainers -arrows- and remove the lower section -2- from the bumper cover -1-.
