Side Bumper Cover End Plate, Removing And Installing, RS3: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

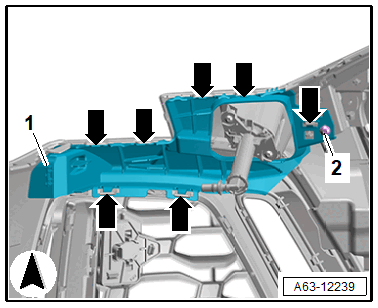

-- If equipped, free up the wiring harness -2-.
-- Free up the washer fluid hose -1- and remove it from the washer nozzle, to do so push the release buttons -3- on both sides.
-- Remove the bolt -2-.
-- Release the retainers -arrows- and remove the end plate -1-.
