Side Bumper Cover End Plate, Removing And Installing, A3/S3: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the center air intake grille. Refer to CENTER AIR INTAKE GRILLE, REMOVING AND INSTALLING .
-- Remove the center end panel. Refer to CENTER END PANEL, REMOVING AND INSTALLING, A3/S3 .

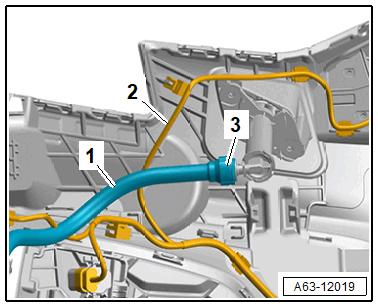

-- If equipped, free up the wiring harness -2-.
-- If equipped, free up the washer fluid hose -1- and remove it from the washer nozzle, to do so push the release buttons -3- on both sides.

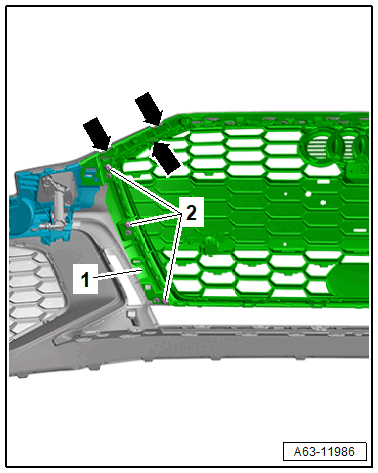

-- Remove the bolts -2-.
-- Release the catches -arrows- and loosen the radiator grille -1- from the bumper cover.
A3/S3:

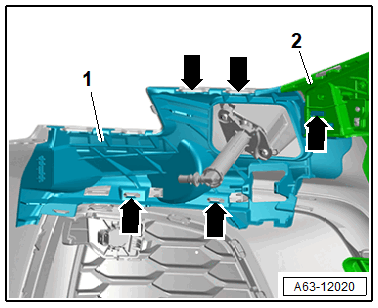

-- Release the retainers -arrows- and remove the end plate -1- to do so slightly remove the loosened radiator grille -2-.
