Overview - Bumper Cover, S Line/S3

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

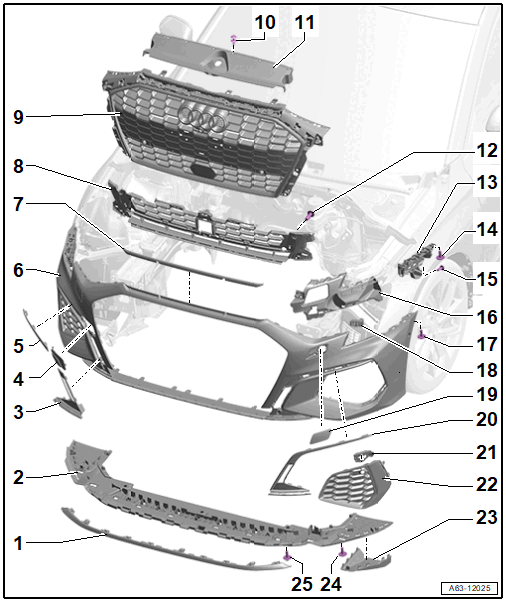

Fig 1: Exploded View Of Front Bumper Cover, S Line/S3

Courtesy of AUDI OF AMERICA, LLC

Front Spoiler
- Removing and installing. Refer to FRONT SPOILER, REMOVING AND INSTALLING, S LINE .
End Panel
- The bumper cover
- Removing and installing. Refer to BUMPER COVER END PLATE, REMOVING AND INSTALLING .
Decorative Trim
- Right inside
- Removing and installing. Refer to BUMPER COVER DECORATIVE TRIM, REMOVING AND INSTALLING, S LINE .
Cover
- For the towing eye
Decorative Trim
- Right
- Removing and installing. Refer to BUMPER COVER DECORATIVE TRIM, REMOVING AND INSTALLING, S LINE .
Bumper Cover
- Removing and installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
Decorative Trim
- Upper
- Removing and installing. Refer to BUMPER COVER UPPER DECORATIVE TRIM, REMOVING AND INSTALLING, S LINE .
Air Intake Grille
- Center
- Removing and installing. Refer to CENTER AIR INTAKE GRILLE, REMOVING AND INSTALLING .
Radiator Grille
- Overview. Refer to OVERVIEW - RADIATOR GRILLE .
Expanding Clip
- Quantity: 6
Lock Carrier Cover
- Removing and installing. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .
Bolt
- Quantity: 2
- 2 Nm
Mount
- For the bumper cover
- Removing and installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING .
Bolt
- Quantity: 2
- 4.5 Nm
Bolt
- 2 Nm
End Panel
- For the side bumper cover
- Removing and installing. Refer to SIDE BUMPER COVER END PLATE, REMOVING AND INSTALLING .
Bolt
- 4.5 Nm
Blind Cover
- For equipment versions without headlamp washer system
- Removing and installing. Refer to BLIND COVER IN BUMPER COVER, REMOVING AND INSTALLING .
Cover
- For the headlamp washer system washer nozzle
- Removing and installing. Refer to HEADLAMP WASHER SYSTEM WASHER NOZZLE COVER, REMOVING AND INSTALLING .
Decorative Trim
- Left
- Removing and installing. Refer to BUMPER COVER DECORATIVE TRIM, REMOVING AND INSTALLING, S LINE .
Mount
- For the parking aid sensor
- Clipped in the side air intake grille
Air Intake Grille
- Side
- Removing and installing. Refer to SIDE AIR INTAKE GRILLE, REMOVING AND INSTALLING, A3 .
Air Duct
Bolt
- Quantity: 3
- 4.5 Nm
Bolt
- Quantity: 3
- 2 Nm
