Overview - Bumper Cover, RS3

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

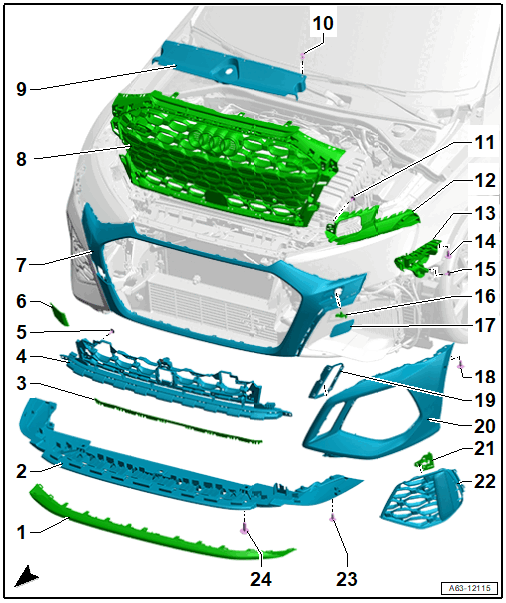

Fig 1: Exploded View Of Front Bumper Cover, RS3

Courtesy of AUDI OF AMERICA, LLC

Front Spoiler
- Removing and installing. Refer to FRONT SPOILER, REMOVING AND INSTALLING, RS3 .
End Panel
- The bumper cover
- Removing and installing. Refer to BUMPER COVER END PLATE, REMOVING AND INSTALLING .
Air Duct
- Clipped into the bumper cover end plate
Air Intake Grille
- Center
- Removing and installing. Refer to CENTER AIR INTAKE GRILLE, REMOVING AND INSTALLING, RS3 .
Bolt
- Quantity: 6
- 2 Nm
Cover
- For the towing eye
Bumper Cover Center Section
- Removing and installing. Refer to BUMPER COVER CENTER SECTION, REMOVING AND INSTALLING .
- Bumper Cover, Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
Radiator Grille
- Overview. Refer to OVERVIEW - RADIATOR GRILLE .
Lock Carrier Cover
- Removing and installing. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .
Expanding Clip
- Quantity: 6
Bolt
- 2 Nm
End Panel
- For the side bumper cover
- Removing and installing. Refer to SIDE BUMPER COVER END PLATE, REMOVING AND INSTALLING, RS3 .
Mount
- For the bumper cover
- Removing and installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING .
Bolt
- Quantity: 2
- 4.5 Nm
Bolt
- 2 Nm
Bracket for the Washer Nozzle Cover
- Only on vehicles without headlamp washer system
Cover
- For the headlamp washer system washer nozzle
- Removing and installing. Refer to HEADLAMP WASHER SYSTEM WASHER NOZZLE COVER, REMOVING AND INSTALLING .
Bolt
- 4.5 Nm
Decorative Trim
- For the bumper cover
- Removing and installing. Refer to BUMPER DECORATIVE TRIM, REMOVING AND INSTALLING, RS3 .
Bumper Cover Side Panel
- Removing and installing. Refer to BUMPER COVER SIDE PANEL, REMOVING AND INSTALLING .
- Bumper Cover, Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
Mount
- For the parking aid sensor
- Clipped in the side air intake grille
Air Intake Grille
- On the side
- Removing and installing. Refer to SIDE AIR INTAKE GRILLE, REMOVING AND INSTALLING, RS3 .
Bolt
- Quantity: 3
- 2 Nm
Bolt
- Quantity: 3
- 4.5 Nm
