Lock Carrier Cover, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the hook release lever. Refer to HOOK RELEASE LEVER, REMOVING AND INSTALLING .

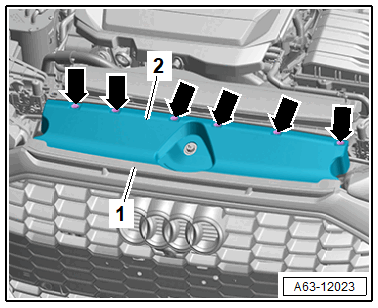

-- Remove the expanding clips -arrows- using the Pliers:T40172C .
-- Remove the lock carrier cover -2- from the groove in the radiator grille -1-.
-- Remove the lock carrier cover.
TIP:
Install the hook operating lever again (refer to HOOK RELEASE LEVER, REMOVING AND INSTALLING ) if in the future procedures the hood is closed.
