Side Air Intake Grille, Removing And Installing, S3: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
Left Side of Vehicle:

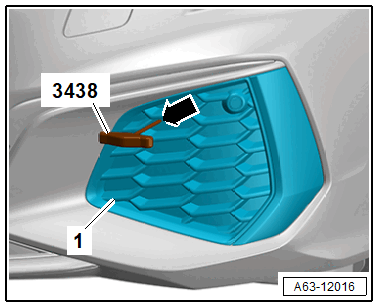

-- Insert the T-Handle Hook:3438 in the opening -arrow- and remove the air intake grille -1- from the bumper cover.
-- Disconnect the connector.
Right Side of Vehicle:

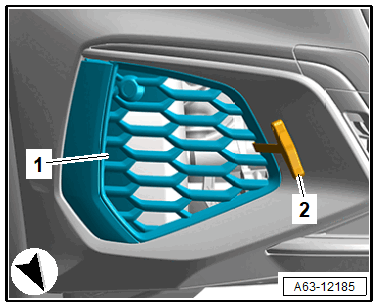

-- Position the Backrest Panel Tool:3370 -item 2- as shown to the opening.
-- Remove the air intake grille -1- from the bumper cover.
-- Disconnect the connector.
