Center Air Intake Grille, Removing And Installing, A3/S3: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Remove the bumper cover end plate. Refer to BUMPER COVER END PLATE, REMOVING AND INSTALLING .
-- Release the retainers -arrows-.
-- Remove the molded foam part -1-.

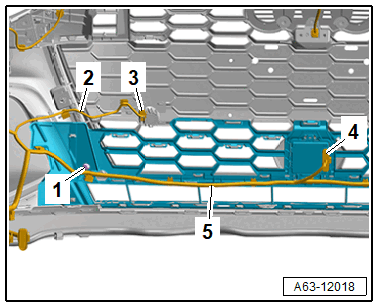

-- Disconnect the connectors -3 and 4- and free up the wiring harness -2 and 5-.
-- Remove the bolt -1-.

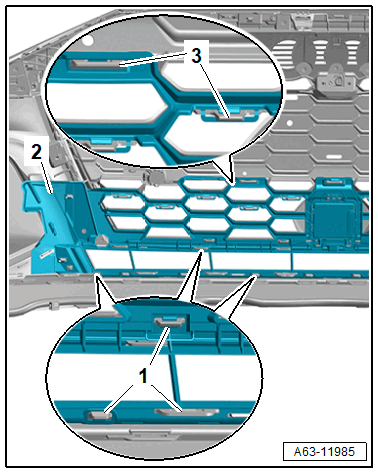

-- Release the retainers -1 and 3- and remove the air intake grille -2- from the bumper cover.
