Bumper Cover, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the lock carrier cover. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .

RS3:

Courtesy of AUDI OF AMERICA, LLC

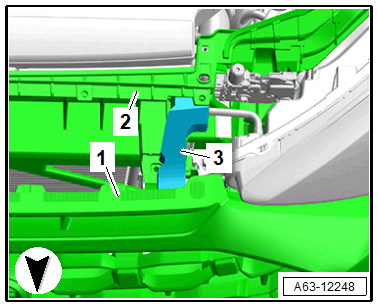

-- Disengage the foam seal -3- on the bumper cover -1- and remove the mount from the bumper cover -2-.

Continuation for All Vehicles:

Courtesy of AUDI OF AMERICA, LLC

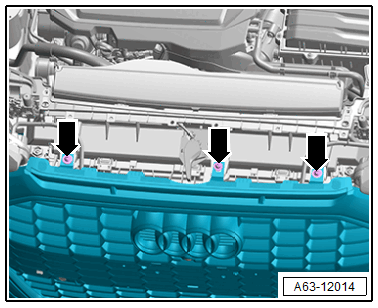

-- Remove the bolts -arrows-.

-- Loosen the wheel housing liner from the retainer in the bumper cover area. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

RS3 equipment version with headlamp washer system:

Courtesy of AUDI OF AMERICA, LLC

-- Remove the wheel housing liner. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

-- Place a drip tray under the coupling point for the washer fluid hose.

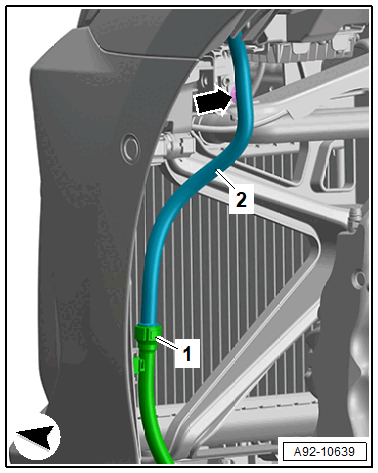

-- Press the release buttons -1- and remove the washer fluid hose -2-.

-- Seal the hose coupling with clean plugs from the Engine Bung Set:VAS 6122 .

A3/S3 equipment version with headlamp washer system:

Courtesy of AUDI OF AMERICA, LLC

-- Remove the wheel housing liner. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

-- Place a drip tray under the coupling point for the washer fluid hose.

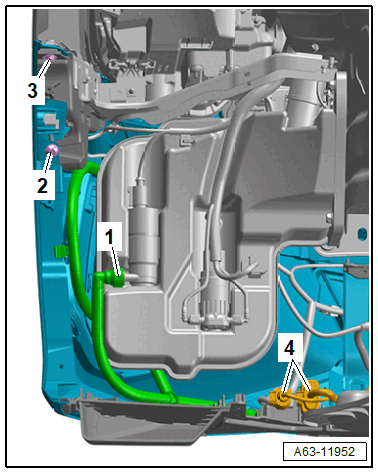

-- Remove the water drain hose -1- from the headlamp washer pump to do this push the release buttons.

-- Seal the hose coupling with clean plugs from the Engine Bung Set:VAS 6122 .

Continuation for All Vehicles:

-- Remove the bolts -2 and 3-.

-- Disconnect the connectors -4-.

-- Remove the bolts -1-.

Courtesy of AUDI OF AMERICA, LLC

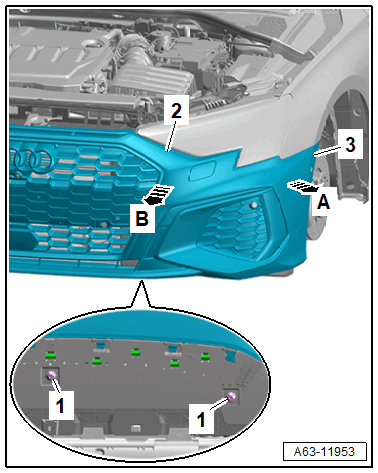

-- Disengage the bumper cover side piece -3- from the side panel -arrow A- and remove the bumper cover -2- toward the front with the help of a second technician -arrow B-.

-- Lay the bumper cover on a soft surface.
