Bumper Cover Side Panel, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the side bumper cover end plate. Refer to SIDE BUMPER COVER END PLATE, REMOVING AND INSTALLING .
Rest of World market version:

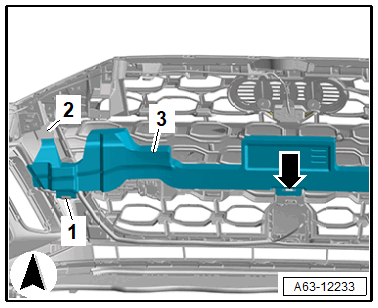

-- Guide out the molded foam part -3- from the brackets -1 and 2-.
-- Release the retainer -arrow-.
-- Remove the molded foam part.
Continuation for All Vehicles:
-- Remove the front spoiler. Refer to FRONT SPOILER, REMOVING AND INSTALLING, RS3 .

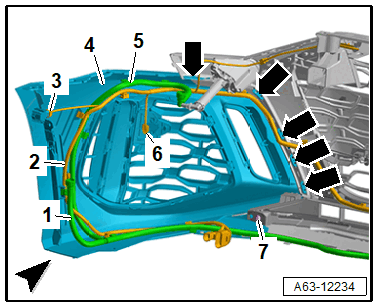

-- Disconnect the connectors -3 through 6-.
-- Free up the wiring harness -2- and the washer fluid hoses -1 and 5- for the headlamp washer system.
-- Remove the bolt -7-.
-- Release the retainers -arrows- and remove the bumper cover side panel -4-.
