Bumper Cover End Plate, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the noise insulation. Refer to OVERVIEW - NOISE INSULATION .
-- Remove the bolts -arrows-.
-- Push the loosened wheel housing liner -1- to the side.

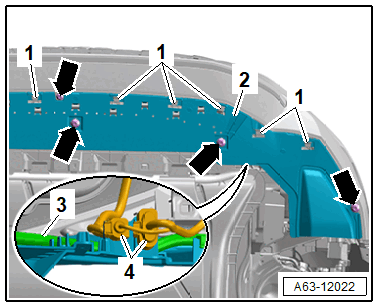

-- Remove the bolts -arrows-.
-- If installed, free up the washer fluid hose for the headlamp washer system -3-.
-- Disconnect the connectors -4- and free up the connector housing.
-- Release the catches -1- and remove the end plate -2- toward the rear.
