Radiator Air Duct, Removing And Installing, RS3: Removing

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

Lower Air Duct:

Courtesy of AUDI OF AMERICA, LLC

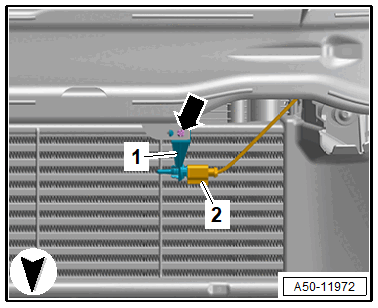

-- Disconnect the connector -2-.

-- Remove the expanding rivets -arrow- and bracket -1- with the Outside Air Temperature Sensor -G17-.

Lower air duct, rest of world market-specific version

Courtesy of AUDI OF AMERICA, LLC

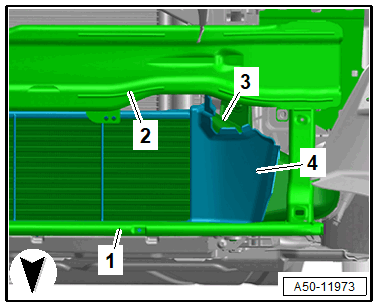

-- Loosen the air duct -4- using the trim removal wedge from the impact protection -1- and then remove from the charge air cooler -3-.

-- Guide out the air duct from between the impact protection and the bumper carrier -2-.

Lower Air Duct, North America Market-Specific Version:

Courtesy of AUDI OF AMERICA, LLC

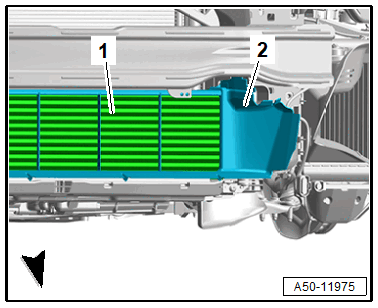

-- Lift the air duct -2- and remove the charge air cooler -1- forward.

Side Air Duct:

Courtesy of AUDI OF AMERICA, LLC

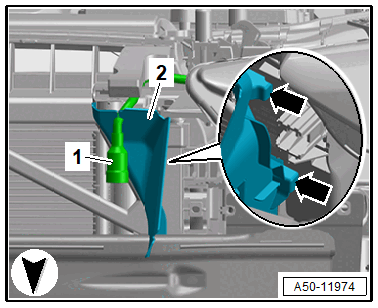

-- Free up the breather hose -1- for the headlamp housing.

-- Loosen the air duct -2- on the positions shown -arrows- with the lock carrier from the lock carrier, pivot it to the side and remove it.
