Radiator Air Duct, Removing And Installing, A3/S3: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
Lower Air Duct:
-- Remove the bumper cover end plate. Refer to BUMPER COVER END PLATE, REMOVING AND INSTALLING .

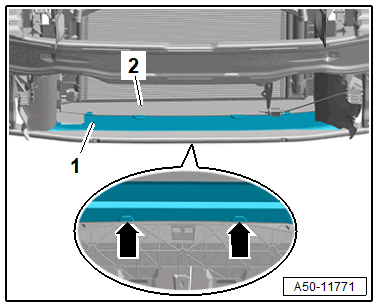

-- Loosen and remove the air duct -1- from below at the same position -arrows- with the trim removal wedge from the lock carrier -2-.
Side Air Duct:
-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

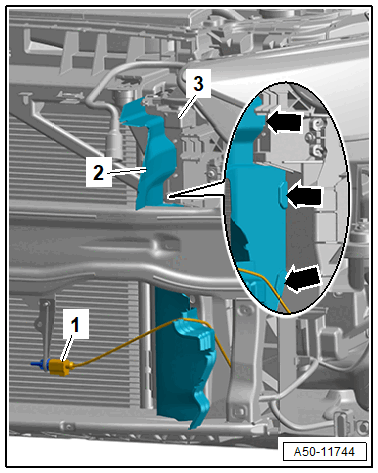

-- Disconnect the connector -1- and free up the wire.
-- Loosen the air duct -2- on the positions shown -arrows- with the lock carrier from the lock carrier -3-, pivot it to the side and remove it downward.
