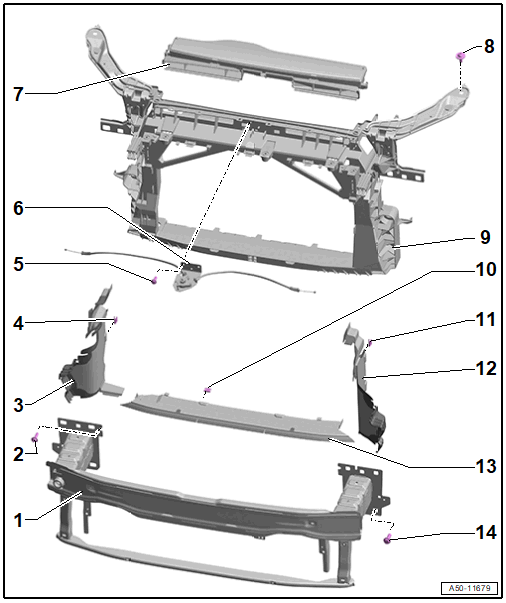

Overview - Lock Carrier
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Bumper Carrier
- There are different versions. Refer to the Parts Information.
- Overview. Refer to OVERVIEW - BUMPER CARRIER .
- Bolt
- Tightening Specification. Refer to OVERVIEW - BUMPER CARRIER .
- Air Duct
- Right
- For the radiator
- Removing and installing. Refer to RADIATOR AIR DUCT, REMOVING AND INSTALLING .
- Clip
- Quantity: 2
- Bolt
- Quantity: 2
- Tightening Specification. Refer to OVERVIEW - RELEASE CABLE .
- Mounting Bracket with Release Cable
- For the hook release lever
- Overview. Refer to OVERVIEW - RELEASE CABLE .
- Air Duct
- For the air filter housing
- Bolt
- Quantity: 2
- 10 Nm
- Lock Carrier
- Removing and installing. Refer to LOCK CARRIER, REMOVING AND INSTALLING .
- Clip
- Quantity: 2
- Clip
- Quantity: 2
- Air Duct
- Left
- For the radiator
- Removing and installing. Refer to RADIATOR AIR DUCT, REMOVING AND INSTALLING .
- Air Duct
- There are different versions. Refer to the Parts Information.
- Lower
- For the radiator
- Removing and installing. Refer to RADIATOR AIR DUCT, REMOVING AND INSTALLING .
- Bolt
- Quantity: 4
- Tightening Specification. Refer to OVERVIEW - BUMPER CARRIER .
