Rear Fender Cover, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

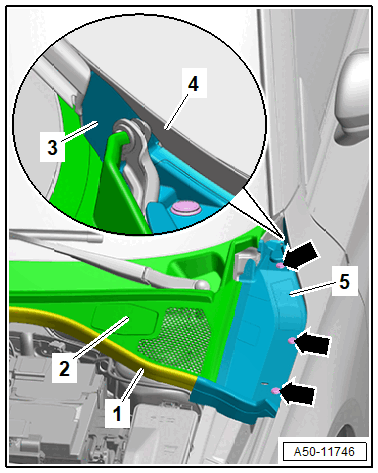

-- Remove the seal -1-.

-- Lift the plenum chamber cover -2-.

-- Remove the expanding rivets -arrows-.

-- Remove the cover -5-, at the same time guide out the sealing lip -3- behind the fender -4-.
