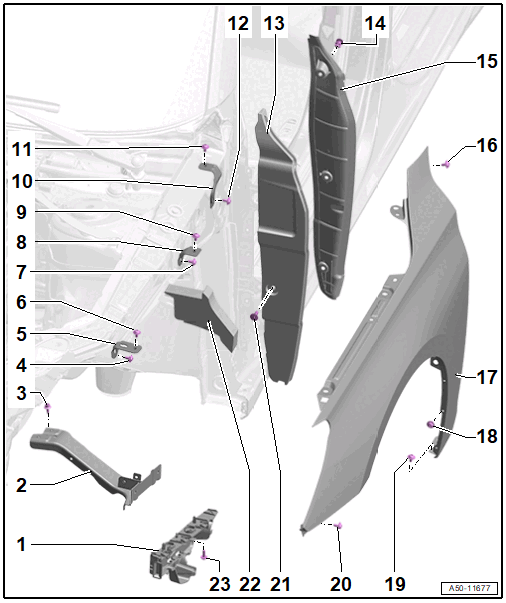

Overview - Fender
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Mount
- For the bumper cover
- Removing and installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING .
- Fender Brace
- Removing and installing. Refer to FENDER BRACE, REMOVING AND INSTALLING .
- Bolt
- Quantity: 2
- 8 Nm
- Bolt
- 8 Nm
- Bracket
- Front
- Bolt
- 8 Nm
- Bolt
- 8 Nm
- Bracket
- Center
- Bolt
- 8 Nm
- Bracket
- Rear
- Bolt
- 8 Nm
- Bolt
- 8 Nm
- Insulation
- Expanding Rivet
- Quantity: 3
- End Panel
- Removing and installing. Refer to END PANEL, REMOVING AND INSTALLING .
- Bolt
- 8 Nm
- Fender
- Removing and installing. Refer to FENDER, REMOVING AND INSTALLING .
- Bolt
- Quantity: 3
- 8 Nm
- Bolt
- Quantity: 2
- 8 Nm
- Bolt
- Quantity: 2
- 8 Nm
- Clip
- Seal
- Bolt
- Quantity: 2
- 8 Nm
