Fender, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- If equipped, disconnect the connectors of the charge door unit. Refer to CHARGE DOOR UNIT, REMOVING AND INSTALLING .

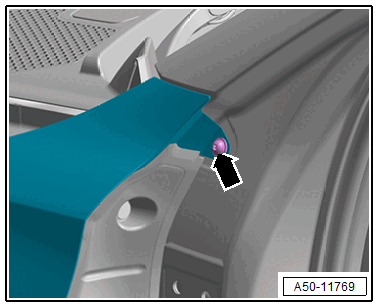

-- Remove the bolt -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the front wheel housing liner. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

RS3 left side of the vehicle:

-- Remove the windshield washer fluid reservoir. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .

Continuation for All Vehicles:

-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Remove the bumper cover mount. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING .

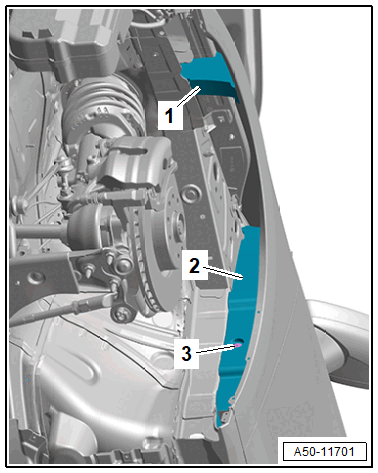

-- Remove the seal -1- for the fender.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the clip -3- and remove the noise insulation -2-.

RS3:

-- Remove the side sill trim panel. Refer to SIDE SILL TRIM PANEL, REMOVING AND INSTALLING, RS3 .

Continuation for All Vehicles:

Courtesy of AUDI OF AMERICA, LLC

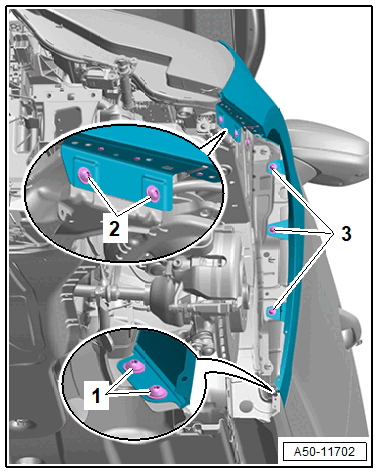

-- Remove the bolts -1, 2, and 3-.

-- Remove the fender cover. Refer to REAR FENDER COVER, REMOVING AND INSTALLING .

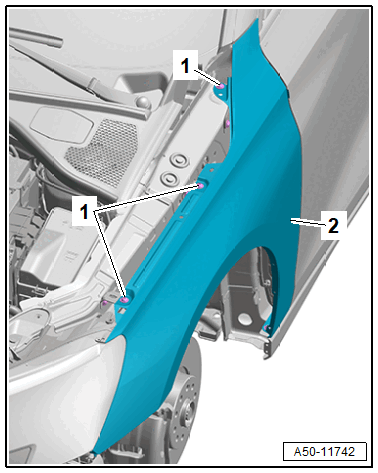

-- Remove the bolts -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the fender -2-.
