Fender Brace, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the front wheel housing liner. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Remove the bumper cover mount. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING .

A3 with TDI-engine:

-- Loosen the fuel filter and move it to the side. Refer to the appropriate Service Information. .

A3/S3 left side of the vehicle:

-- Remove the battery tray. Refer to BATTERY TRAY, REMOVING AND INSTALLING .

RS3 left side of the vehicle:

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Free up the wiring harness on the bracket -1- for the air filter housing.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and remove the bracket for the air filter housing.

Continuation for Both Sides:

-- Remove the E-box and with the Fuse Panel B - SB- installed move it to the side. Refer to E-BOX, REMOVING AND INSTALLING .

Right Side of Vehicle:

Courtesy of AUDI OF AMERICA, LLC

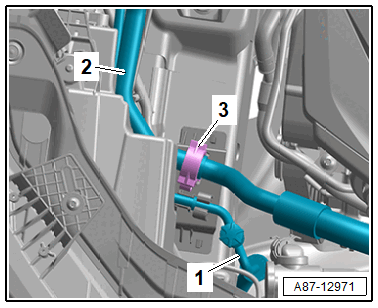

-- Open the clip -3- and free up the refrigerant line -6-.

-- Press the refrigerant line -1- out of the retainer.

Continuation for Both Sides:

Courtesy of AUDI OF AMERICA, LLC

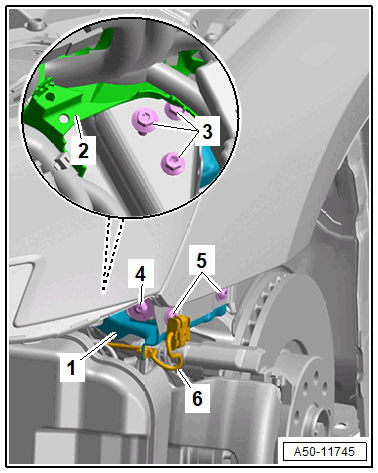

-- Remove the bolts -3- to do so lift the wiring channel -2- slightly.

-- Free up the wiring harness -6-.

-- Remove the bolts -4 and 5-.

-- Remove the fender brace -1-.
