Plenum Chamber Cover, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the windshield wiper arms. Refer to WINDSHIELD WIPER ARMS, REMOVING AND INSTALLING .

RS3:

Courtesy of AUDI OF AMERICA, LLC

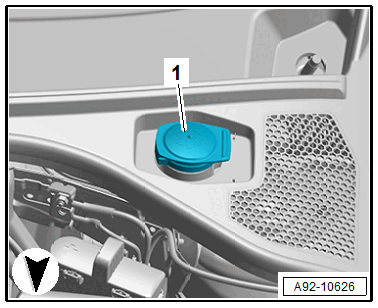

-- Turn the cap -1- for the washer fluid level filler neck by 180° and open.

Continuation for All Vehicles:

Courtesy of AUDI OF AMERICA, LLC

-- Remove the seal -1-.

-- Coat the transition between the windshield -2- and the plenum chamber cover -5- with some soapy water. Starting at the window edge, carefully remove the plenum chamber cover vertically upward from the retainer on the windshield.

-- Remove the plenum chamber cover -5- by carefully removing the plenum chamber cover tab -3- in the -direction of the arrow- from the windshield mount -4-.
