Plenum Chamber Bulkhead, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .

-- Remove the lock washers -arrows-.

Courtesy of AUDI OF AMERICA, LLC

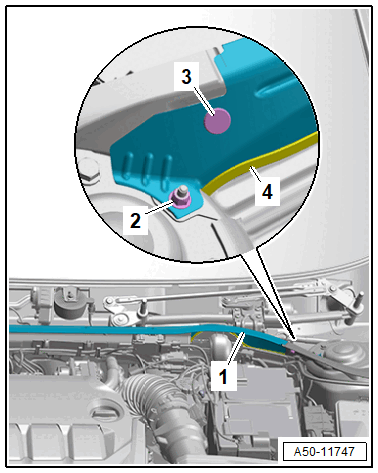

-- Free up the insulation -1- in the area of the plenum chamber bulkhead.

-- Remove the expanding clip -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -2-.

-- Remove the plenum chamber bulkhead -1- upward.
