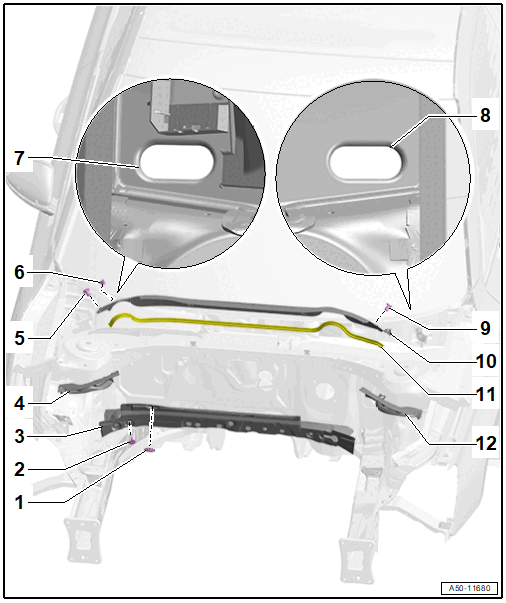

Overview - Bulkhead
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Lock Washer
- Quantity: 2
- Clip
- Quantity: 2
- Heat Shield
- Right Cover
- For the plenum chamber end plate
- Expanding Clip
- Nut
- Quantity: 2
- 8 Nm
- Right Plenum Chamber Water Drain
- Checking and cleaning. Refer to PLENUM CHAMBER WATER DRAIN, CHECKING .
- Left Plenum Chamber Water Drain
- Checking and cleaning. Refer to PLENUM CHAMBER WATER DRAIN, CHECKING .
- Expanding Clip
- Plenum Chamber Bulkhead
- Removing and installing. Refer to PLENUM CHAMBER BULKHEAD, REMOVING AND INSTALLING .
- Seal
- For the plenum chamber bulkhead
- Left Cover
- For the plenum chamber end plate
