Shock Absorber, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- Before starting the procedures, determine the curb weight position. Refer to VEHICLES WITH COIL SPRINGS, CHECKING THE CURB WEIGHT POSITION FOR AXLE ALIGNMENT .

-- Remove the wheel. Refer to WHEELS AND TIRES .

-- Install the Support Device:VAS6931/1 -A- to the brake rotor -1- using two wheel bolts -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Position the Engine and Gearbox Jack:VAS6931 -B- on the support device.

CAUTION:

There is a risk of an accident when lowering or lifting the vehicle when the engine and gearbox jack is underneath it.

- Never lift or lower the vehicle when the engine and gearbox jack is underneath it.

- Never leave the engine and gearbox jack under the vehicle any longer than necessary.

Vehicle with Electronic Damping:

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1- from the shock absorber -2-.

-- Free up the wire -3- -arrow-.

Continuation for All Vehicles:

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1-.

Vehicle with Torsion Beam Axle:

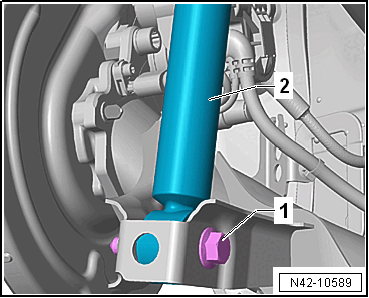

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -1- for the shock absorber -2-.

Vehicle with Multi-Link Suspension:

Courtesy of AUDI OF AMERICA, LLC

-- If equipped, remove the transverse link stone chip protection. Refer to TRANSVERSE LINK STONE CHIP PROTECTION, REMOVING AND INSTALLING .

-- Remove the nut -1- and bolt -2-.

Continuation for All Vehicles:

-- Press together the shock absorber and remove.
