Overview - SUBFRAME Attachment

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

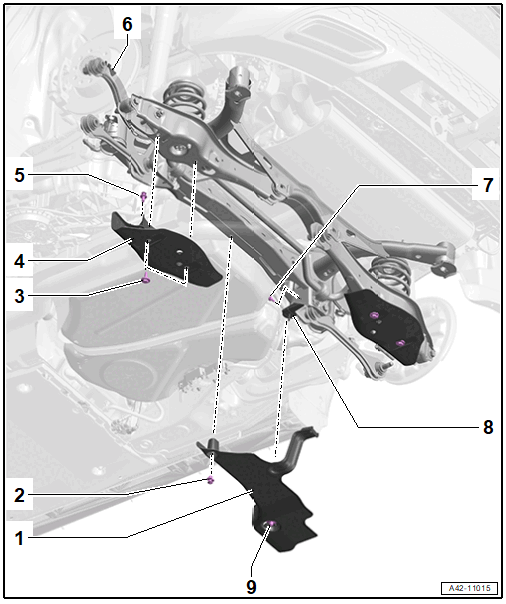

Fig 1: Exploded View Of Subframe Attachment
GWWA42-11015Courtesy of AUDI OF AMERICA, LLC
  1. Center Stone Chip Protection
  2. Bolt with Spreader Plug
    • 2 Nm
  3. Bolt
    • 8 Nm
  4. Transverse Link Stone Chip Protection
  5. Expanding Rivet
  6. Bracket
    • For securing the wiring harness to the electromechanical parking brake
  7. Bolt
    • 8 Nm
  8. Bracket
  9. Nut
    • 2 Nm
