Upper Transverse Link, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- Before starting the procedures, determine the curb weight position. Refer to VEHICLES WITH COIL SPRINGS, CHECKING THE CURB WEIGHT POSITION FOR AXLE ALIGNMENT .

-- Remove the wheel. Refer to WHEELS AND TIRES .

Right Side of Vehicle:

-- Remove the underbody trim panels. Refer to OVERVIEW - UNDERBODY TRIM PANELS .

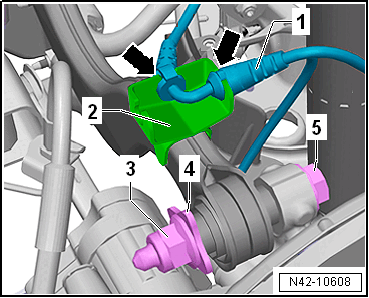

FWD Vehicle:

Courtesy of AUDI OF AMERICA, LLC

-- Free up the wire -1- on the bracket -2- -arrows-.

-- Remove the nut -3- and remove the washer -4-.

-- Remove the bolt -5-.

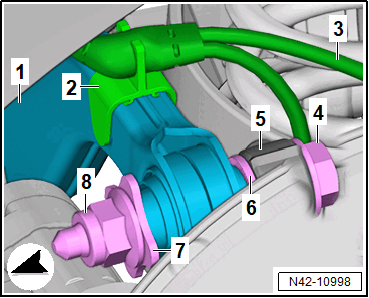

AWD Vehicle:

Courtesy of AUDI OF AMERICA, LLC

-- Free up the wire -3- on the bracket -2-.

-- Remove the nut -8- and remove the washer -7-.

-- Remove the bolt -4- and remove the washer -6-.

Continuation for All Vehicles:

Courtesy of AUDI OF AMERICA, LLC

-- Mark the installation location of the eccentric screw -3- on the subframe with a felt-tip pen.

-- Remove the nut -2- using Insert Tool - 18mm:T10179 and remove the eccentric screw -3-.

-- Remove the upper transverse link -1-.
