Tie Rod, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Before starting the procedures, determine the curb weight position. Refer to VEHICLES WITH COIL SPRINGS, CHECKING THE CURB WEIGHT POSITION FOR AXLE ALIGNMENT .
-- Remove the applicable wheel. Refer to WHEELS AND TIRES .
-- Remove the right rear underbody trim panel. Refer to OVERVIEW - UNDERBODY TRIM PANELS .

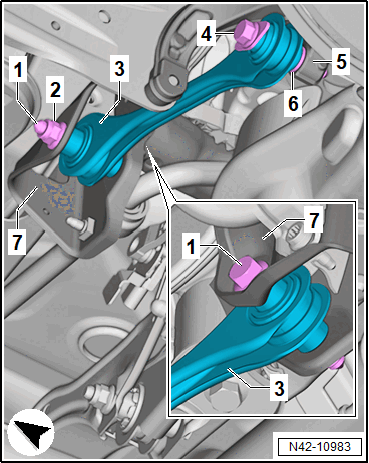

-- Remove the bolts -arrows- for the stabilizer bar -1-
-- Push the stabilizer bar to the side.
-- Loosen the nut -2- and the bolt -4- several turns.
-- Remove the nut -2- and bolt -1- rearward.
-- Remove the bolt -4- and remove with the washer -6-.
-- Remove the tie rod -3-.
