Right Rear ABS Wheel Speed Sensor -G44- /Left Rear ABS Wheel Speed Sensor -G46-, REMOVING AND INSTALLING

Special tools and workshop equipment required

• Polycarbamide Grease. Refer to the Parts Information.

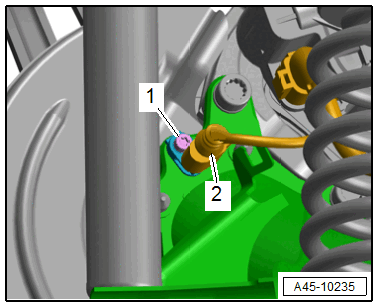

Removing FWD vehicle with torsion beam rear axle:

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -2- from the speed sensor.

-- Remove the bolt -1- and remove the speed sensor.

Removing FWD vehicle with multi-link rear axle:

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -2- from the speed sensor.

-- Remove the bolt -1- and remove the speed sensor.

AWD vehicles removing:

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -2- from the speed sensor.

-- Remove the bolt -1- and remove the speed sensor.

Installing

Install in the reverse order of removal while noting the following:

-- Clean the inner surface of the hole before inserting the speed sensor.

-- Coat the speed sensor before inserting all around with Polycarbamide Grease at the same time omit the top of the sensor.

-- Insert the speed sensor all the way by hand and tighten.

Tightening Specifications

• Refer to OVERVIEW - REAR AXLE SPEED SENSOR
