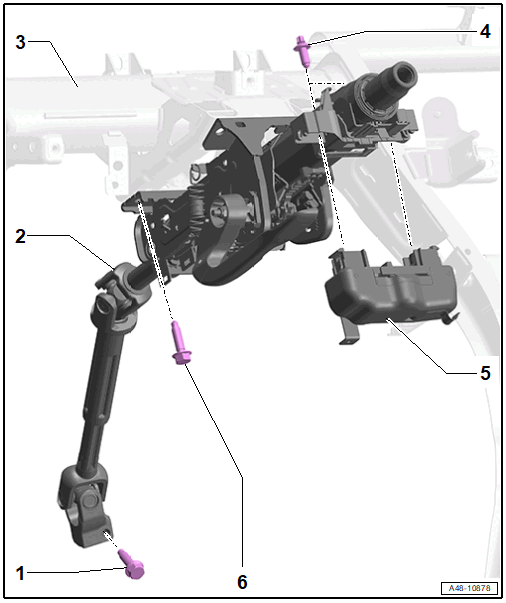

Overview - Steering Column
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 20 Nm +90°
- Replace after removing
- Clean the threaded hole (for example, using a thread tap) before installing the new bolt.
- Steering Column
- Allocation. Refer to the Parts Information.
- Removing and Installing. Refer to STEERING COLUMN, REMOVING AND INSTALLING .
- The steering column must be engaged on the instrument panel crossmember mounting bracket when installing (assembly aid).
- Instrument Panel Crossmember
- Shear bolt
- Loosening and tightening. Refer to Electronic Steering Column Lock Control Module -J764-, REMOVING AND INSTALLING
- Electronic Steering Column Lock Control Module -J764-
- Removing and Installing. Refer to Electronic Steering Column Lock Control Module -J764-, REMOVING AND INSTALLING .
- Bolt
- 20 Nm
- Replace after removing
