Valve Stem Seals, Removing And Installing, Cylinder Head Removed: Removing

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the intake manifold. Refer to INTAKE MANIFOLD, REMOVING AND INSTALLING .

-- If necessary, remove the turbocharger. Refer to TURBOCHARGER, REMOVING AND INSTALLING .

-- Insert the Cylinder Head Tensioning Device:VAS 6419 in the Engine and Gearbox Bracket VAS 6095A:VAS 6095A .

Courtesy of AUDI OF AMERICA, LLC

-- Tension the cylinder head on the cylinder head tensioning device, as shown.

-- Connect the cylinder head tensioning device to compressed air.

-- Slide the air cushion with the lever -arrow- under the combustion chamber onto the valve stem seal that will be removed.

-- Let enough compressed air flow into the air cushion until it contacts the valve plate.

-- Align the Guide Plate:VAS 5161A/44 on the cylinder head at the same time pay attention to the marking:

Courtesy of AUDI OF AMERICA, LLC

A - Exhaust Valves

E - Intake Valves

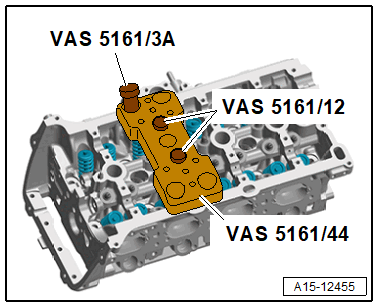

-- Secure the guide plate with the Valve Cotter Tool Kit - Knurled Thumb Screws :VAS 5161/12 .

-- Position the Valve Cotter Tool Kit - Punch :VAS 5161/3A on the valve spring and loosen the stuck valve keepers with a plastic mallet.

-- Install the Valve Cotter Tool Kit - Retainer :VAS 5161/6 with the Guide Forks M6/M8 with Valve Cotter Tool Kit - Threaded Studs :VAS 5161/5 in the guide plate.

Courtesy of AUDI OF AMERICA, LLC

-- Push the Valve Cotter Tool Kit - Assembly Cartridge :VAS 5161/8A into the guide plate.

-- Engage the Valve Keeper Tool Kit - Pressure Fork :VAS 5161/2 at the engaging device and press the installation cartridge downward.

-- At the same time, turn the installation cartridge knurled bolt right until points engage in the valve keepers.

-- Move the knurled bolt left and right slightly. This presses the valve keepers apart and captures them in the assembly cartridge.

-- Release the pressure fork.

-- Remove the assembly cartridge.

-- Detach and remove the guide plate.

-- Remove the valve spring and the valve spring retainer.

-- Remove the valve stem seal using the Puller - Valve Seal:3364 .

Courtesy of AUDI OF AMERICA, LLC
