Camshaft, Removing And Installing: Installing

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- If removed, install the roller rocker lever and the hydraulic lifter as instructed by the markings. Refer to Figure.

-- Make sure all the roller rocker levers lie correctly on the ends of the valve stems and are clipped onto the respective hydraulic lifters.

In the case that the crankshaft has been turned in the meantime:

GWWA15-12084Courtesy of AUDI OF AMERICA, LLC

-- Turn the crankshaft on the hex fitting -2- to "TDC" point.

-- Then turn the crankshaft 90° counter-clockwise out of "TDC".

-- Cover the open engine components with a clean cloth.

CAUTION:

Risk of injuring the eyes from sealant residue.

- Wear protective eyewear.

-- Remove the sealant residues at the cylinder head using a blade scraper (width at least 40 mm).

-- Remove any sealant residue from the groove on the cylinder head cover as well as on the sealing surfaces.

-- Clean any oil or grease off the sealing surfaces.

-- Bring the pin of the cam adjustment actuator into the installation position. Refer to Installing .

-- Coat the camshaft contact surfaces with engine oil.

-- Align the exhaust camshaft centrally to the roller rocker lever.

GWWA15-12404Courtesy of AUDI OF AMERICA, LLC

-- Position the exhaust camshaft in the cylinder head and turn the lobes -arrows- from cylinder 4 upward.

GWWA15-11805Courtesy of AUDI OF AMERICA, LLC
GWWA15-11806Courtesy of AUDI OF AMERICA, LLC
CAUTION:

Risk of injuring the eyes due to the sliding bar ball springing out.

- Wear protective eyewear.

-- Insert the intake camshaft in the cylinder head cover.

-- With the intake camshaft installed push the front and rear sliding bar ends to each other -arrows-.

GWWA15-11807Courtesy of AUDI OF AMERICA, LLC

-- Turn the intake camshaft until the markings -A- and -B- align.

Fig 1: Locating Alignment Marks
GWWN15-10929Courtesy of AUDI OF AMERICA, LLC
GWWA15-12198Courtesy of AUDI OF AMERICA, LLC
CAUTION:

Risk of engine damage due to excess sealant in the lubrication system.

- Do not apply sealant bead thicker than indicated.

TIP:

A cylinder head cover with inserted exhaust camshaft is shown as an example.

-- Apply sealant to the clean sealing surfaces of the cylinder head cover -arrows- as shown.

-- Secure the camshaft and place the cylinder head cover with the camshaft on the cylinder head, at the same time pay attention to the alignment pins.

-- Lightly press on the cylinder head cover by hand and at the same time slightly push the camshafts back and forth -arrows- until the cylinder head cover lays on the cylinder head >>without tension<<.

Fig 2: Turning Camshafts
GWWN15-10928Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts in multiple steps. Refer to Figure.

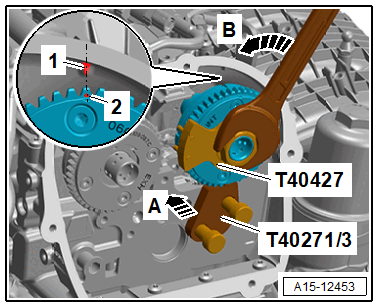

-- Turn the intake camshaft with the Assembly Tool:T40427  in the -direction of the arrow B- until the marks -1- and -2- align.

GWWA15-12453Courtesy of AUDI OF AMERICA, LLC

-- Push the Camshaft Lock:T40271/3  in the chain sprocket splines -arrow A-.

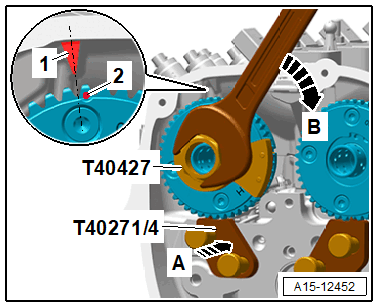

-- Turn the exhaust camshaft using the Assembly Tool:T40427  in -direction of the arrow B-, until the marking -2- of the exhaust camshaft is shifted by half a tooth clockwise to the marking -1- on the cylinder head cover.

GWWA15-12452Courtesy of AUDI OF AMERICA, LLC

-- Push the Camshaft Lock:T40271/4  in the chain sprocket splines -arrow A-.

-- Turn the crankshaft on the hex fitting to the "TDC point".

GWWN15-10976Courtesy of AUDI OF AMERICA, LLC

-- Remove the Vibration Damper Assembly Tool - Knurled Nut:T10531/4  and the Vibration Damper Assembly Tool - Turning Over Tool:T10531/3  .

Install in reverse order of removal. Note the following:

-- Install the camshaft timing chain. Refer to CAMSHAFT TIMING CHAIN, REMOVING AND INSTALLING .

-- Install the oil separator. Refer to OIL SEPARATOR, REMOVING AND INSTALLING .

-- Install the vacuum pump. Refer to VACUUM PUMP, REMOVING AND INSTALLING .

-- Install the high pressure pump. Refer to HIGH PRESSURE PUMP, REMOVING AND INSTALLING .

-- Install the upper coolant pipe. Refer to UPPER COOLANT PIPE, REMOVING AND INSTALLING .

-- Install the ignition coils. Refer to IGNITION COILS, REMOVING AND INSTALLING .

-- Install the left air duct pipe. Refer to LEFT AIR DUCT PIPE, REMOVING AND INSTALLING .

CAUTION:

Risk of damaging the valves and piston crowns by performing procedures on the valvetrain.

- Only start the engine 30 minutes after installation of the camshaft so that they do not contact the hydraulic lifters.

- To ensure valves do not strike pistons when starting, carefully rotate the crankshaft at least two turns.
