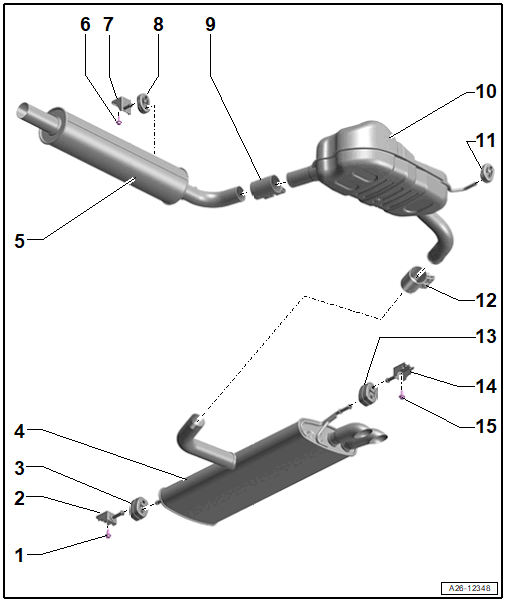

Overview - Muffler, AUDI A3 From My 2021, With Fwd

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 20 Nm
Bracket
- For the retaining loop
Retaining Loop
- Replace if damaged
- Replace the red retaining loop after removing
Rear Muffler
- As original equipment, one unit with front muffler and center muffler If a repair is required replace each separately
- Removing and Installing. Refer to MUFFLER, REMOVING AND INSTALLING, AUDI A3 FROM MY 2021/Q2 FROM MY 2016/AUDI Q3 FROM MY 2019/TT FROM MY 2015 .
- Separating point. Refer to EXHAUST PIPES/MUFFLERS, DISCONNECTING .
- Exhaust System, Installing without Tension. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
Front Muffler
- As original equipment, one unit with center muffler and rear muffler. If a repair is required replace each separately
- Removing and Installing. Refer to MUFFLER, REMOVING AND INSTALLING, AUDI A3 FROM MY 2021/Q2 FROM MY 2016/AUDI Q3 FROM MY 2019/TT FROM MY 2015 .
- Separating point. Refer to EXHAUST PIPES/MUFFLERS, DISCONNECTING .
- Exhaust System, Installing without Tension. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
Bolt
- 20 Nm
Bracket
- For the retaining loop
Retaining Loop
- Replace if damaged
- Replace the red retaining loop after removing
Center Clamping Sleeve
- Before tightening, align the exhaust system without tension. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
- Installation position. Refer to Fig 1.
- Tighten threaded connections evenly. Refer to the appropriate Service Information. .
Center Muffler
- As original equipment, one unit with front muffler and rear muffler. If a repair is required replace each separately
- Removing and Installing. Refer to MUFFLER, REMOVING AND INSTALLING, AUDI A3 FROM MY 2021/Q2 FROM MY 2016/AUDI Q3 FROM MY 2019/TT FROM MY 2015 .
- Separating point. Refer to EXHAUST PIPES/MUFFLERS, DISCONNECTING .
- Exhaust System, Installing without Tension. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
Retaining Loop
- Replace if damaged
- Replace the red retaining loop after removing
Rear Clamping Sleeve
- Before tightening, align the exhaust system without tension. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
- Installation position. Refer to OVERVIEW - MUFFLER, AUDI A3 FROM MY 2021, WITH FWD . .
- Tighten threaded connections evenly. Refer to the appropriate Service Information. .
Retaining Loop
- Replace if damaged
- Replace the red retaining loop after removing
Bracket
- For the retaining loop
Bolt
- 20 Nm

Center Clamping Sleeve Installation Position

Fig 1: Double Clamps

Courtesy of AUDI OF AMERICA, LLC

-- Install the clamping sleeve in the position shown.

Threaded connections point forward.
Nuts downward.
Bolt ends must not protrude over the lower edge of the clamping sleeve.
