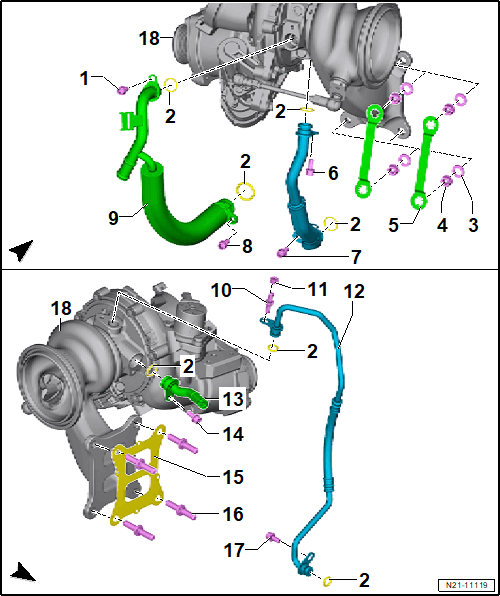

Overview - Turbocharger, Part 2
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 9 Nm
- O-Ring
- Replace after removing
- Washer
- Installed, depending on the version
- Nut
- Replace after removing
- Coat the threaded pins with hot bolt paste. Refer to the Parts Information.
- Tightening specification and sequence. Refer to Figure.
- Locking Plate
- Quantity: 2
- Replace after removing
- Installing. Refer to Fig 2.
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- Coolant Return Line
- Threaded Pin
- 9 Nm
- Nut
- 10 Nm
- Oil Supply Line
- Coolant Supply Line
- Bolt
- 9 Nm
- Seal
- Replace after removing
- Threaded Pin
- Screw-in depth and tightening specification. Refer to Fig 1.
- Bolt
- 9 Nm
- Turbocharger
- There are different versions. Refer to the Parts Information.
- Removing and Installing. Refer to TURBOCHARGER, REMOVING AND INSTALLING .

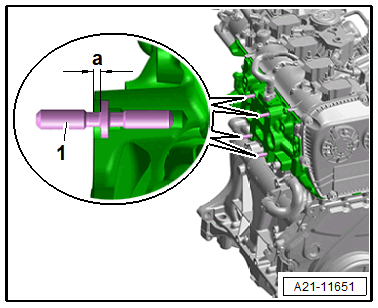

Check the screw-in depth of the threaded pin
-- Tighten the threaded pin -1- to 23 Nm.
-- Measure the dimension -a- of the sealing surface of the cylinder head to the collar on the threaded pin.
- At dimension -a- less than or equal to 2.4 mm: tightening specification 23 Nm OK
- At dimension -a- more than 2.4 mm: tightening specification 27 Nm.
Install the locking plates
- Pay attention to distortion of the sprockets.
The locking plates are pressed onto the nuts using the following tools:
- Pry bar
- 1 /2 "-Socket 14 mm
- Hammer
- Wrench - 14 mm
-- Press on the locking plates for easy accessible nuts using the 1 /2 "- Socket - 14mm and the hammer.
-- Press on the locking plates for difficult accessible nuts using the Wrench - 14 mm and the pry bar, at the same time support the pry bar on the turbocharger.
