Charge Air Pressure Control Module -GX34-, REMOVING AND INSTALLING: Removing

• Follow the guidelines for clean working conditions. Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .

-- Drain the coolant. Refer to DRAIN THE COOLANT .

Audi A1 from MY 2018:

Audi A3 from MY 2021/TT from MY 2015 with FWD:

-- Remove the right drive axle heat shield. Refer to DRIVE AXLE HEAT SHIELD, REMOVING AND INSTALLING .

Continuation for all Audi A3 from MY 2021/Q2 from MY 2016/Q3 from MY 2019/TT from MY 2015

Courtesy of AUDI OF AMERICA, LLC

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Free up the electrical wire.

-- Remove the bolt -upper arrow- and remove the coolant connection -1-.

AWD Vehicle:

Fig 1: Identifying Clamps With Air Guide Pipe

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the hose clamps -1 and 2- and remove the air duct pipe.

-- Seal the open lines and connections with clean plugs from the Engine Bung Set:VAS 6122  .

-- Remove the bolt -1-, turn the connection in the -direction of the arrow- and remove.

Courtesy of AUDI OF AMERICA, LLC

Continuation for All Vehicles:

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect and free up the connector -1-.

-- Slightly lift the locking spring -2- with a small screwdriver and remove from the ball pin control rod.

Courtesy of AUDI OF AMERICA, LLC

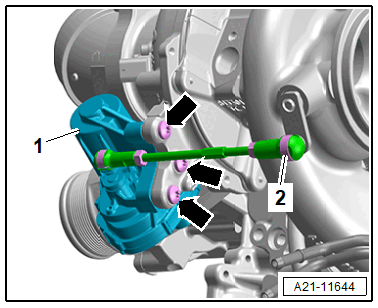

-- Remove the bolts -arrows- and the Charge Air Pressure Control Module -GX34- -item 1-.
