Charge Air System, Checking For Leaks

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Turbo System Tester Kit:V.A.G 1687

Fig 1: Identifying Turbo System Tester Kit
Courtesy of AUDI OF AMERICA, LLC
Turbo System Tester Kit - Adapter 10:V.A.G 1687/10 and Turbo System Tester Kit - Adapter :V.A.G 1687/14

Fig 2: Identifying Turbo System Tester Kit
Courtesy of AUDI OF AMERICA, LLC

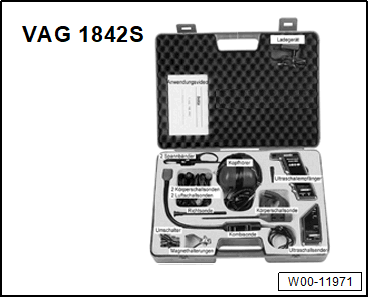

Ultrasonic Tester:V.A.G 1842S

Courtesy of AUDI OF AMERICA, LLC
Leak detection spray, commercially available

Procedure

Follow the guidelines for clean working conditions. Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Loosen the hose clamps -1 and 2- and remove the air duct pipe.

Fig 3: Identifying Clamps With Air Guide Pipe

Courtesy of AUDI OF AMERICA, LLC

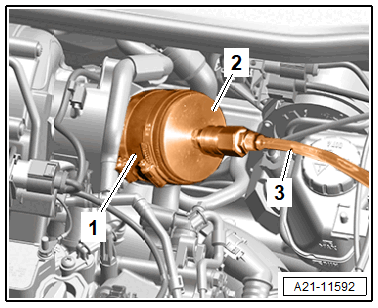

-- Connect the Turbo System Tester Kit - Adapter 10:V.A.G 1687/10 -item 2- with Turbo System Tester Kit - Adapter 14:V.A.G 1687/18-14 -item 1- on the turbocharger.

Courtesy of AUDI OF AMERICA, LLC

-- Connect the Turbo System Tester Kit:V.A.G 1687 -item 3- to the adapter.

Preparing the Turbo System Tester Kit:V.A.G 1687 :

Courtesy of AUDI OF AMERICA, LLC

-- Pull the pressure regulating valve -2- upward and remove completely, close the valves -3- and -4-.

-- Connect the Turbo System Tester Kit:V.A.G 1687 to compressed air -1- with a commercially available intermediate piece.

-- Drain the water in the viewing glass via the water drain plug -6-.

-- Open the valve -3-.

CAUTION:

Risk of damaging the components if the pressure is set too high.

- Never set the test pressure above the specified adjustment.

-- Set the pressure to 0.2 bar (2.9 psi) using the pressure regulating valve -2-.

-- Open the valve -4- and wait until the test circuit is filled. Regulate the pressure to 0.2 bar (2.9 psi) again if necessary.

-- Open the cap on the oil filler tube.

-- Check the charge air circuit for leaking areas:

By listening, also on the oil filler tube
By feeling
With a commercially available leak detection spray
With the Ultrasonic Tester:V.A.G 1842S . Refer to the Operating Instructions for the handling.

TIP:

A small quantity of air dissipates via the valves in the engine. For this reason a pressure retention test is not possible.

Assembling

Assemble in the reverse order of removal. Note the following:

Secure all hose connections with hose clamps that match the ones used in series production. Refer to the Parts Information.

-- Install the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

Tightening Specifications

Refer to OVERVIEW - CHARGE AIR HOSE CONNECTIONS
