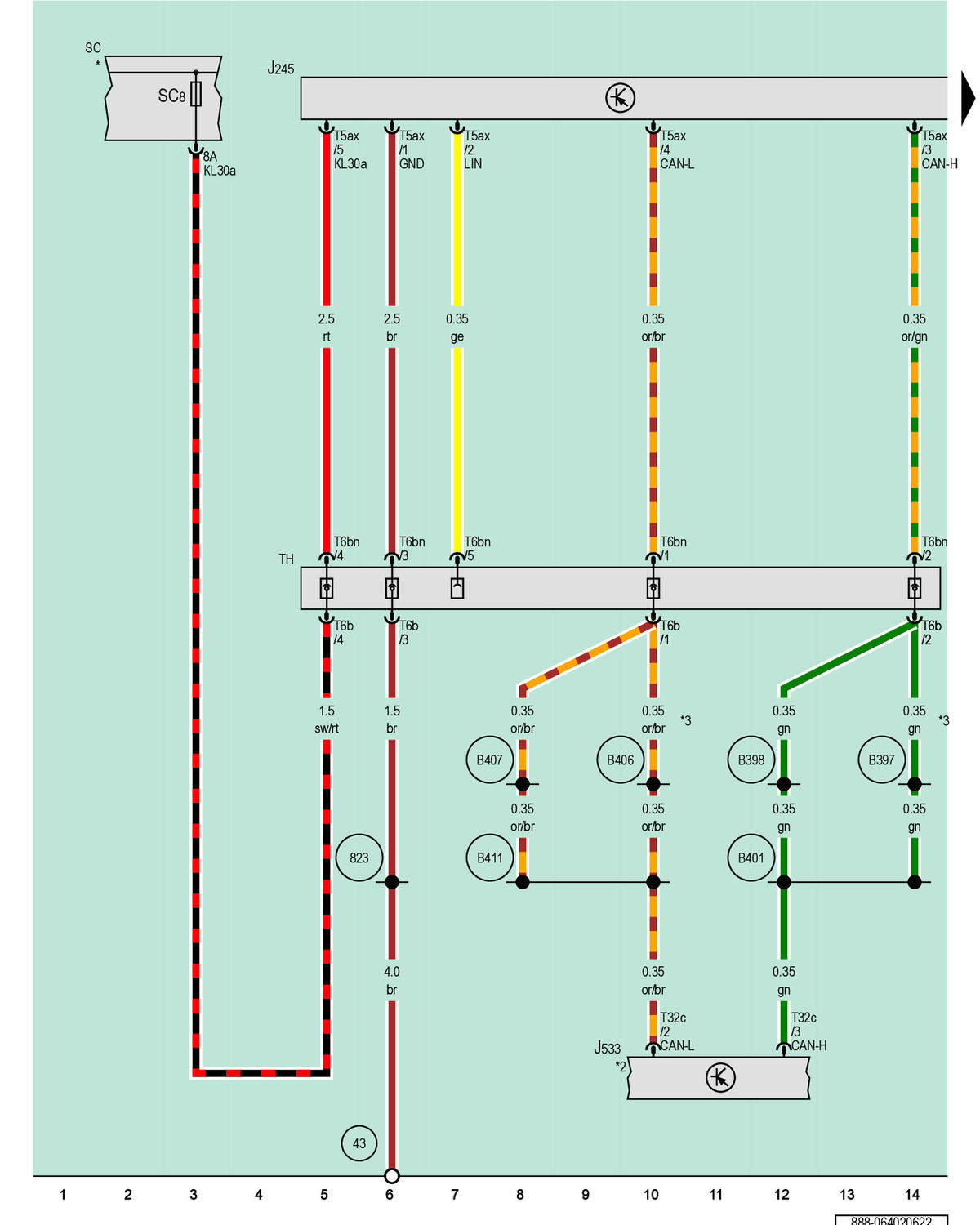

Sunroof Control Module, Data Bus On Board Diagnostic Interface, Fuse Panel C

Courtesy of AUDI OF AMERICA, LLC

J245

Sunroof Control Module

J533

Data Bus on Board Diagnostic Interface

SC

Fuse Panel C

SC8

Fuse 8 (On Fuse Panel C)

T5ax

5-Pin Connector, Black

T6b

6-Pin Connector, Black

T6bn

6-Pin Connector, Black

T32c

32-Pin Connector, Black

TH

Coupling Point on Roof

43

Ground Connection on A-Pillar, Lower Right

823

Ground Connection 16 (in Interior Wiring Harness)

B397

Comfort System CAN Bus High Connection 1 (in Main Wiring Harness)

B398

Comfort System CAN Bus High Connection 2 (in Main Wiring Harness)

B401

Comfort System CAN Bus High Connection 5 (in Main Wiring Harness)

B406

Comfort System CAN Bus Low Connection 1 (in Main Wiring Harness)

B407

Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)

B411

Comfort System CAN Bus Low Connection 6 (in Main Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior

*2

Refer to Applicable Wiring Diagram for Data Bus Networking

*3

Through April 2020
