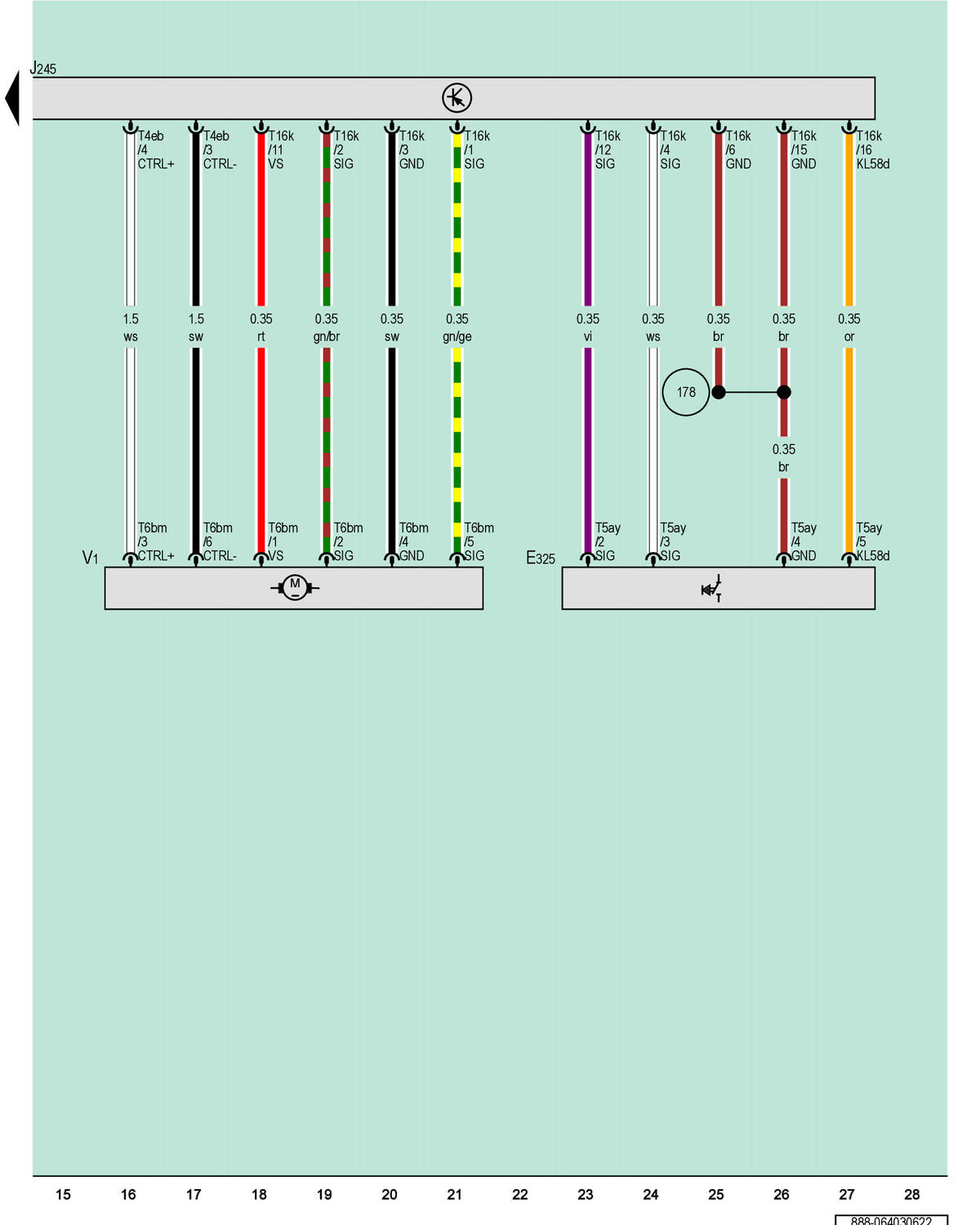

Sunroof Button, Sunroof Control Module, Sunroof Motor

Courtesy of AUDI OF AMERICA, LLC

E325

Sunroof Button

J245

Sunroof Control Module

T4eb

4-Pin Connector, Black

T5ay

5-Pin Connector, Black

T6bm

6-Pin Connector, Black

T16k

16-Pin Connector, Black

V1

Sunroof Motor

178

Ground Connection (in Sunroof Wiring Harness)
