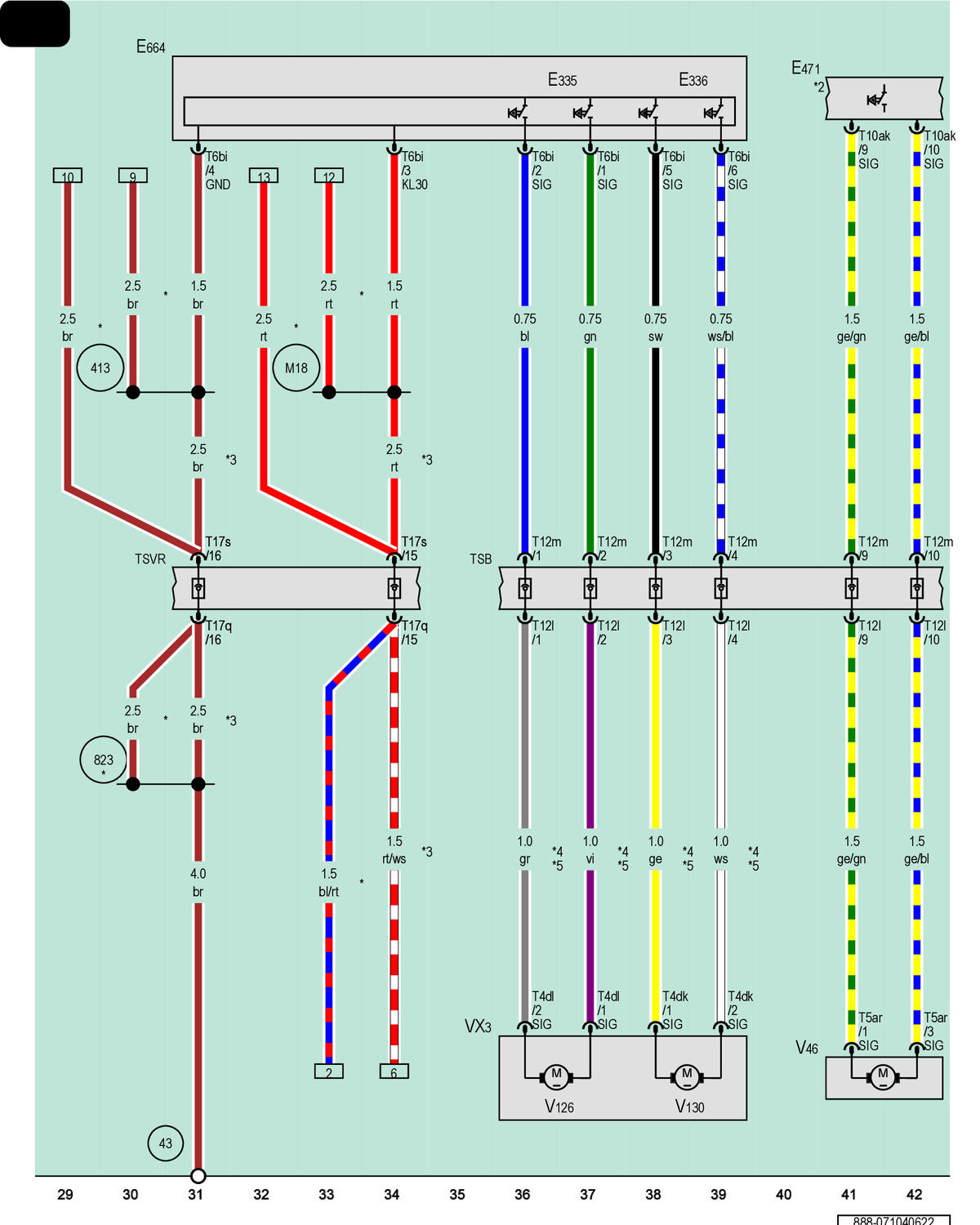

Front Passenger Seat Adjustment Control Head, Front Passenger Seat Switch Module, Front Passenger Seat Lumbar Support, Front Passenger Backrest Adjustment Motor

Courtesy of AUDI OF AMERICA, LLC

E335

Lumbar Support Height Adjustment Button

E336

Lumbar Support Forward/Back Adjustment Button

E471

Front Passenger Seat Adjustment Control Head

E664

Front Passenger Seat Switch Module

T4dk

4-Pin Connector, Black

T4dl

4-Pin Connector, Black

T5ar

5-Pin Connector, Brown

T6bi

6-Pin Connector, Black

T10ak

10-Pin Connector, Black

T12l

12-Pin Connector, Black

T12m

12-Pin Connector, Black

T17q

17-Pin Connector, Red

T17s

17-Pin Connector, Red

TSB

Front Passenger Seat Backrest Coupling Point

TSVR

Right Front Seat Coupling Station

VX3

Front Passenger Seat Lumbar Support

V46

Front Passenger Backrest Adjustment Motor

V126

Front Passenger Seat Lumbar Support Curvature Adjustment Motor

V130

Front Passenger Seat Lumbar Support Height Adjustment Motor

Ground Connection on A-Pillar, Lower Right

413

Ground Connection 4 (in Seat Adjustment Wiring Harness)

823

Ground Connection 16 (in Interior Wiring Harness)

M18

Connection 1 (in Front Passenger Seat Adjustment Wiring Harness)

For RHD Vehicles

Refer to Applicable Seat Adjustment Wiring Diagram

For LHD Vehicles

Component Contained in Driver Side Area for RHD Vehicles

Component Contained in Passenger Side Area for LHD Vehicles
