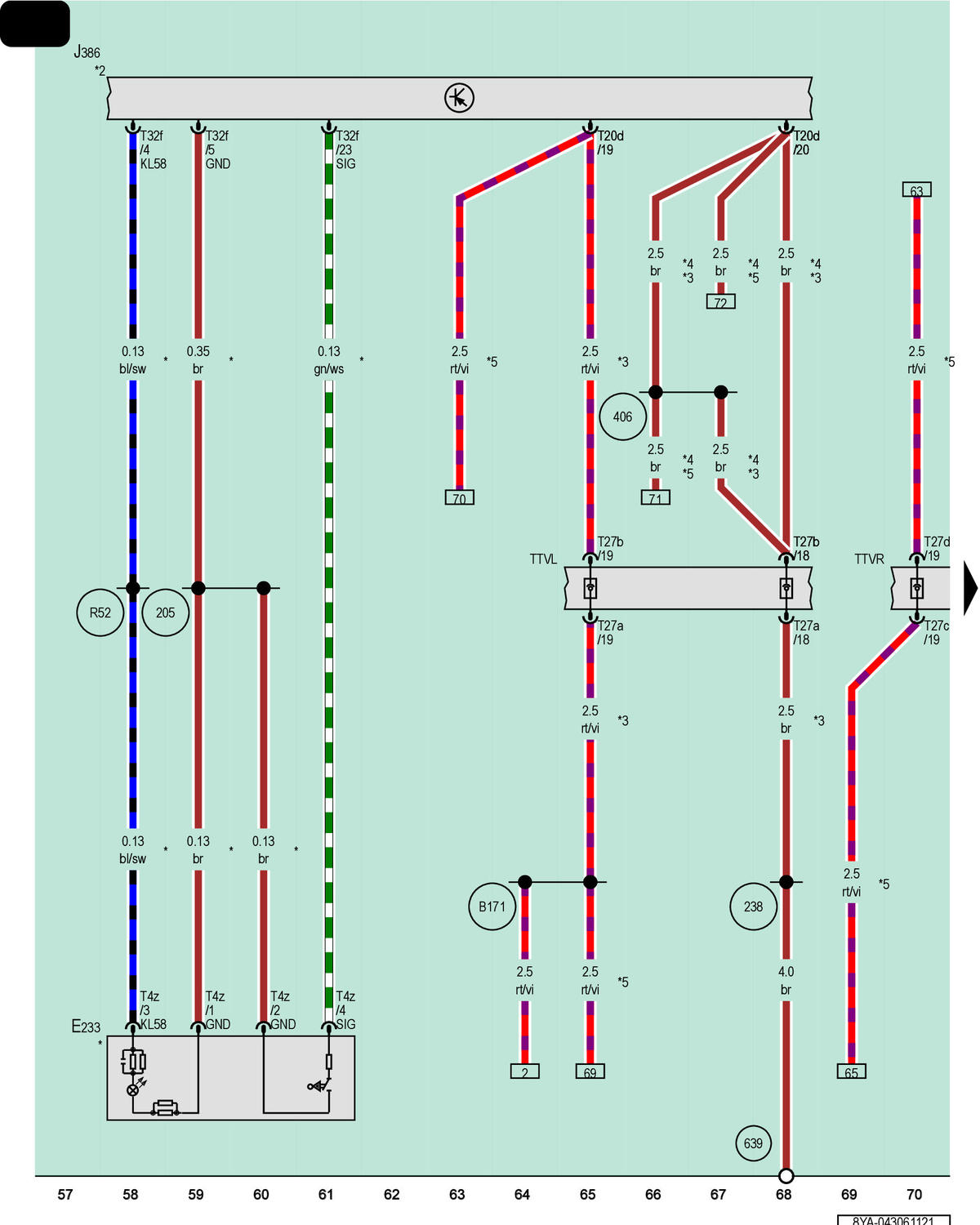

Rear Lid Remote Release Button, Driver Door Control Module

Courtesy of AUDI OF AMERICA, LLC

E233

Rear Lid Remote Release Button

J386

Driver Door Control Module

T4z

4-Pin Connector, Brown

T20d

20-Pin Connector, White

T27a

27-Pin Connector, Black

T27b

27-Pin Connector, Black

T27c

27-Pin Connector, Black

T27d

27-Pin Connector, Black

T32f

32-Pin Connector, Blue

TTVL

Left Front Door Coupling Point

TTVR

Right Front Door Coupling Point

205

Ground Connection (in Driver Door Wiring Harness)

238

Ground Connection 1 (in Interior Wiring Harness)

406

Ground Connection 5 (in Driver Door Wiring Harness)

639

Ground Connection on Left A-Pillar

B171

Positive Connection 3 (30) (in Interior Wiring Harness)

R52

Connection 58S (in Driver Door Wiring Harness)

*

For Vehicles with Sensor-Controlled Power Rear Lid Opening

*2

Refer to Applicable Driver Door Wiring Diagram

*3

For LHD Vehicles

*4

Depending on Equipment

*5

For RHD Vehicles
