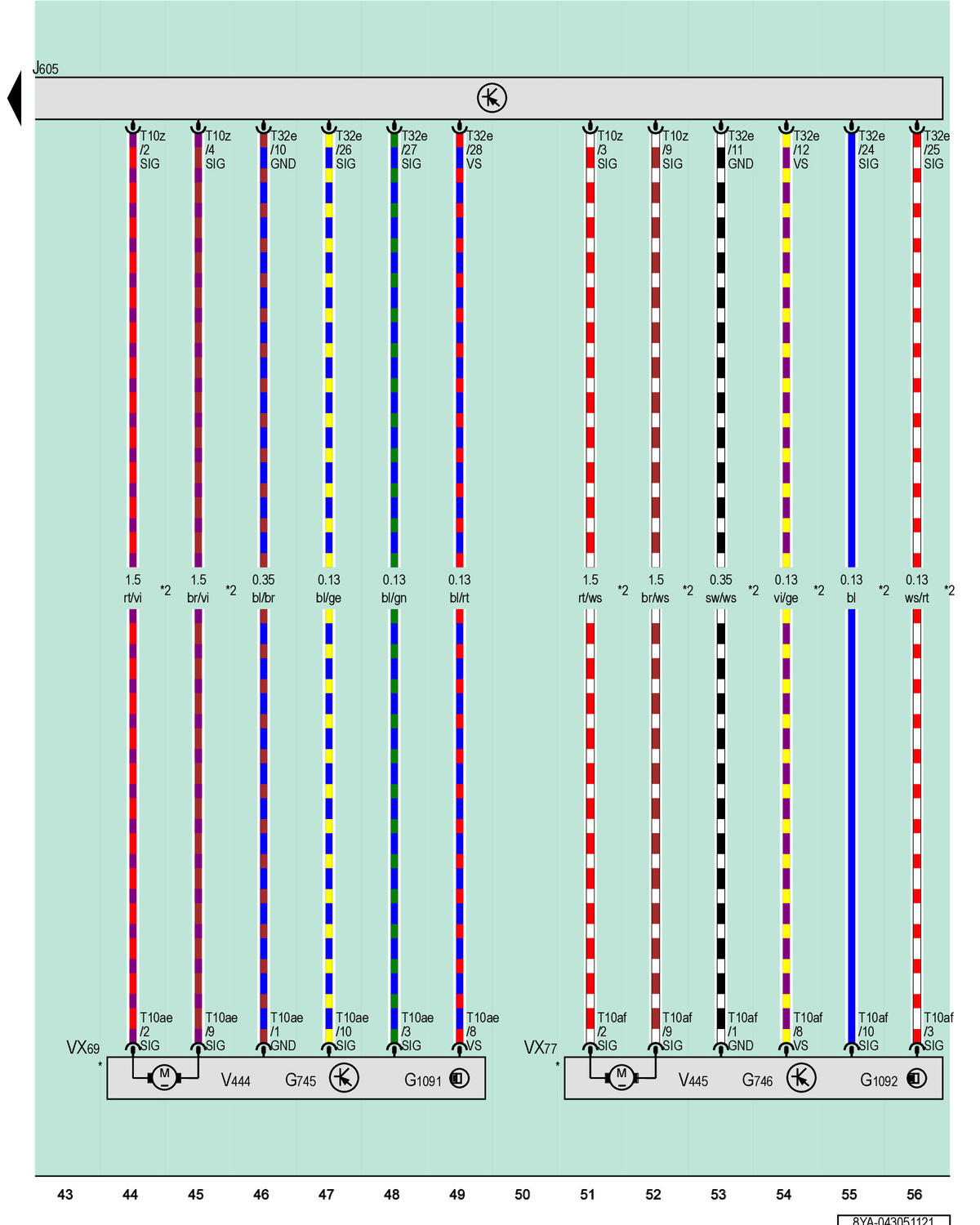

Rear Lid Control Module, Rear Lid Drive Unit, Rear Lid Drive Unit 2

Courtesy of AUDI OF AMERICA, LLC

G745

Sensor in Rear Lid Motor 1

G746

Sensor in Rear Lid Motor 2

G1091

Sensor 2 in Rear Lid Motor 1

G1092

Sensor 2 in Rear Lid Motor 2

J605

Rear Lid Control Module

T10ae

10-Pin Connector, Black

T10af

10-Pin Connector, Black

T10z

10-Pin Connector, Black

T32e

32-Pin Connector, Black

VX69

Rear Lid Drive Unit

VX77

Rear Lid Drive Unit 2

V444

Rear Lid Motor 1

V445

Rear Lid Motor 2

*

Pre-Wired Component

*2

Different Wire Color Possible
