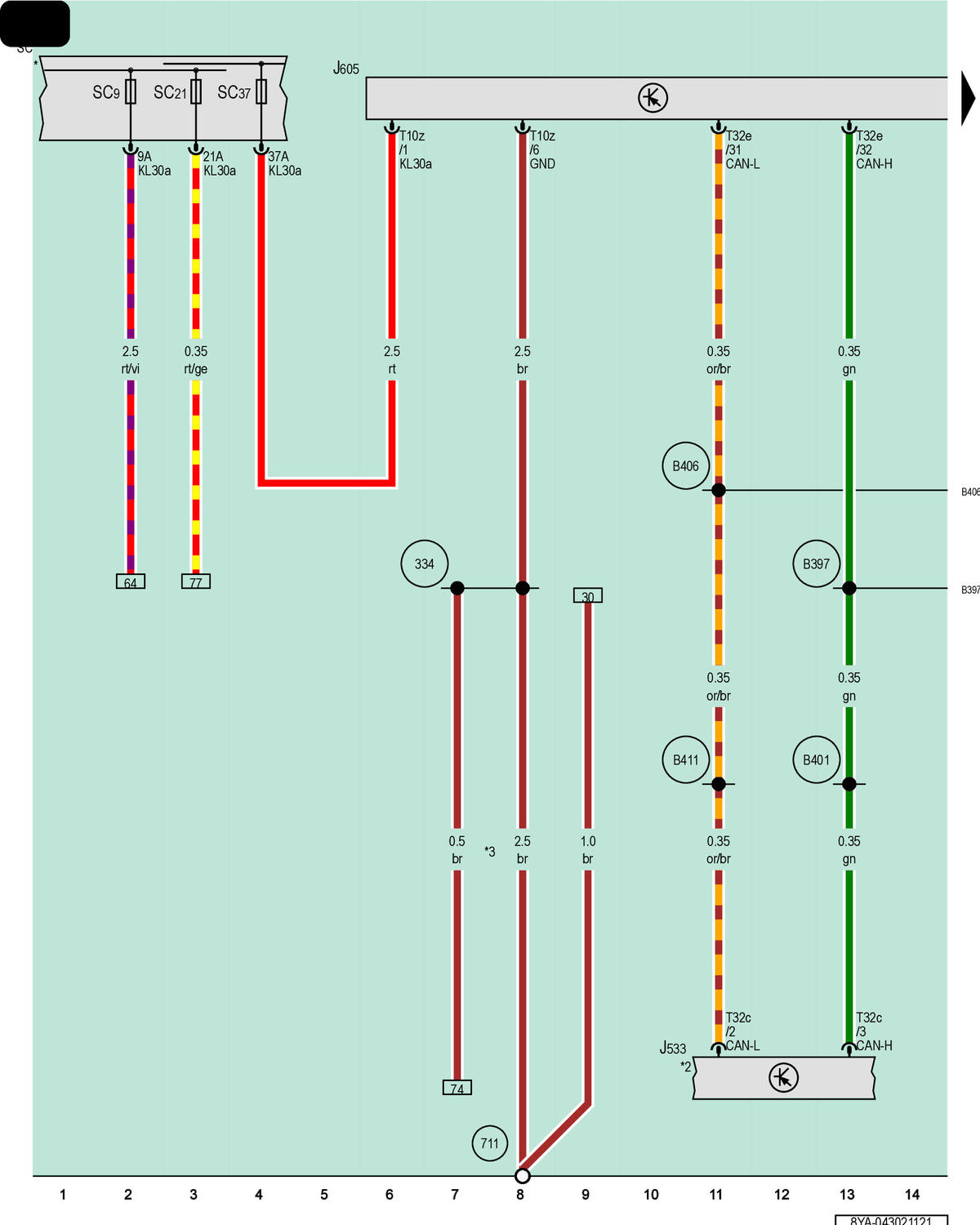

Data Bus On Board Diagnostic Interface, Rear Lid Control Module, Fuse Panel C

Courtesy of AUDI OF AMERICA, LLC

J533

Data Bus on Board Diagnostic Interface

J605

Rear Lid Control Module

Fuse Panel C

SC9

Fuse 9 (On Fuse Panel C)

SC21

Fuse 21 (On Fuse Panel C)

SC37

Fuse 37 (On Fuse Panel C)

T10z

10-Pin Connector, Black

T32c

32-Pin Connector, Black

T32e

32-Pin Connector, Black

334

Ground Connection 6 (in Rear Wiring Harness)

711

Ground Connection 3 on Left Rear Chassis Side Member

B397

Comfort System CAN Bus High Connection 1 (in Main Wiring Harness)

B401

Comfort System CAN Bus High Connection 5 (in Main Wiring Harness)

B406

Comfort System CAN Bus Low Connection 1 (in Main Wiring Harness)

B411

Comfort System CAN Bus Low Connection 6 (in Main Wiring Harness)

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior

Refer to Applicable Wiring Diagram for Data Bus Networking

For Vehicles with Sensor-Controlled Power Rear Lid Opening
