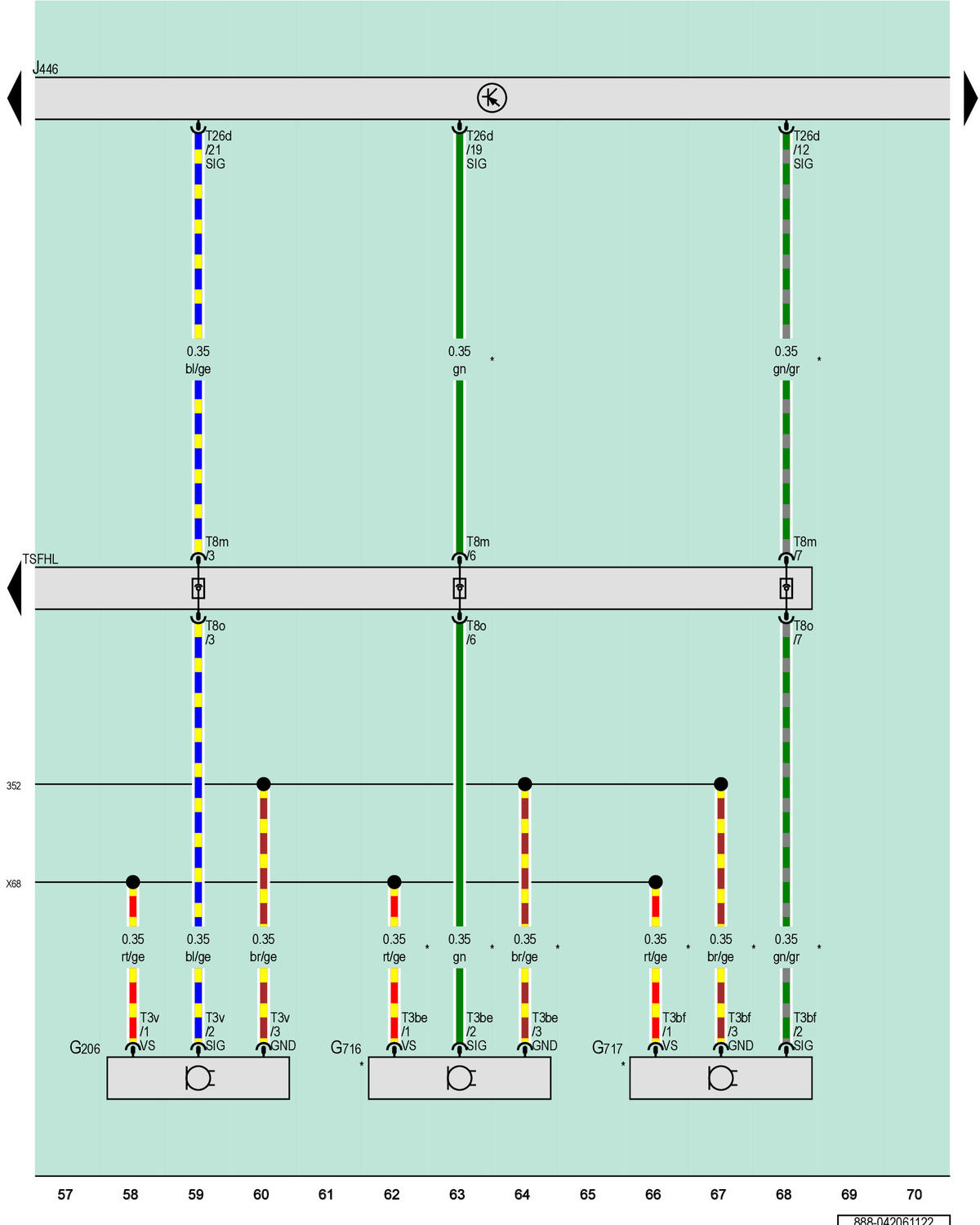

Right Rear Parking Aid Sensor, Left Rear Parallel Parking Assistance Sensor, Right Rear Parallel Parking Assistance Sensor, Parking Aid Control Module
G206
Right Rear Parking Aid Sensor
G716
Left Rear Parallel Parking Assistance Sensor
G717
Right Rear Parallel Parking Assistance Sensor
J446
Parking Aid Control Module
T3be
3-Pin Connector, Black
T3bf
3-Pin Connector, Black
T3v
3-Pin Connector, Black
T8m
8-Pin Connector, Black
T8o
8-Pin Connector, Black
T26d
26-Pin Connector, Black
TSFHL
Coupling Point on Left Rear Bumper
352
Parking Aid Ground Connection (in Rear Bumper Wiring Harness)
X68
Parking Aid Connection (in Rear Bumper Wiring Harness)
*
For Vehicles with Parallel Parking Assistance
