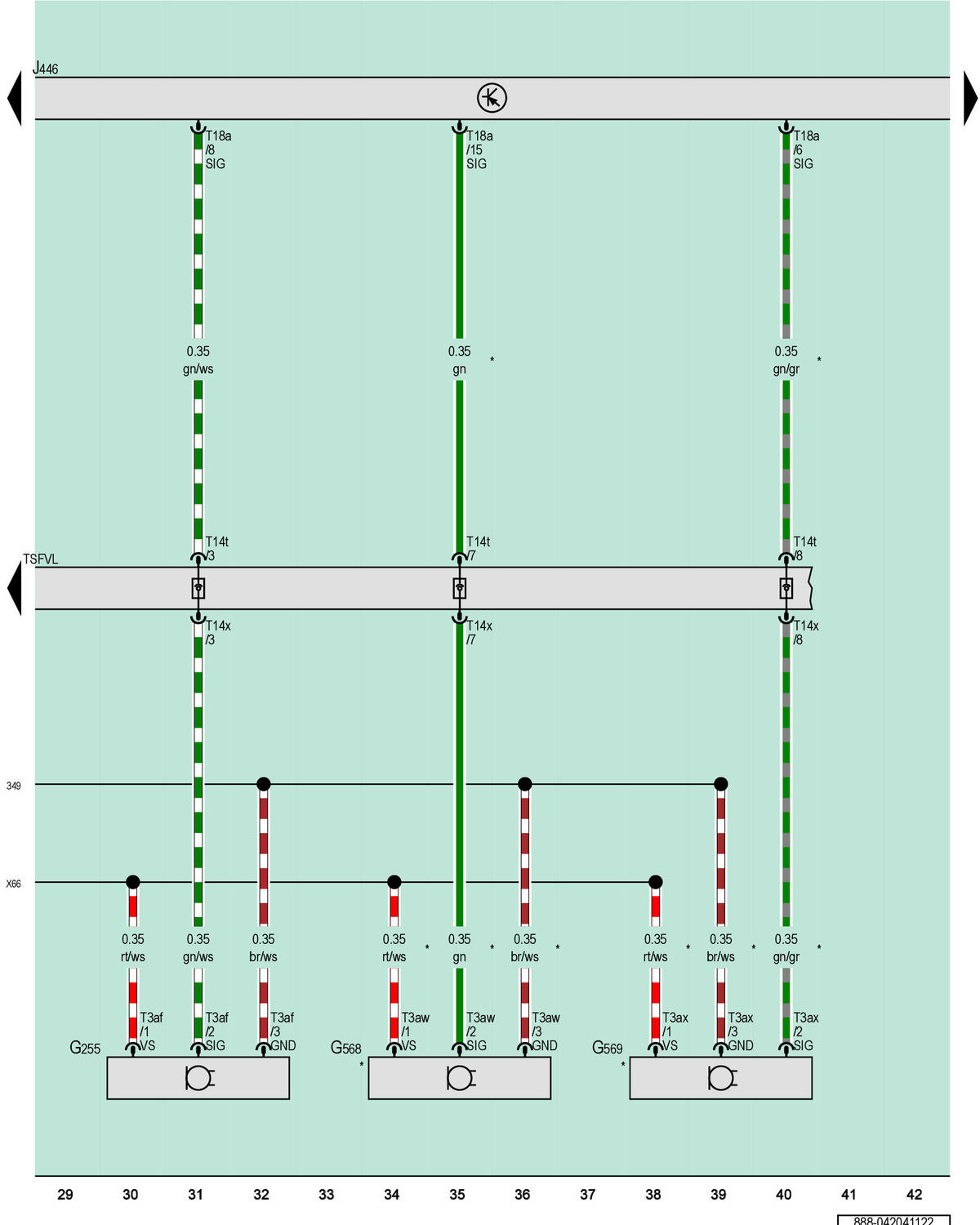

Left Front Parking Aid Sensor, Left Front Parallel Parking Assistance Sensor, Right Front Parallel Parking Assistance Sensor, Parking Aid Control Module
G255
Left Front Parking Aid Sensor
G568
Left Front Parallel Parking Assistance Sensor
G569
Right Front Parallel Parking Assistance Sensor
J446
Parking Aid Control Module
T3af
3-Pin Connector, Black
T3aw
3-Pin Connector, Black
T3ax
3-Pin Connector, Black
T14t
14-Pin Connector, Black
T14x
14-Pin Connector, Black
T18a
18-Pin Connector, Black
TSFVL
Coupling Point on Left Front Bumper
349
Horn Ground Connection (in Front Bumper Wiring Harness)
X66
Horn Connection (in Front Bumper Wiring Harness)
*
For Vehicles with Parallel Parking Assistance
