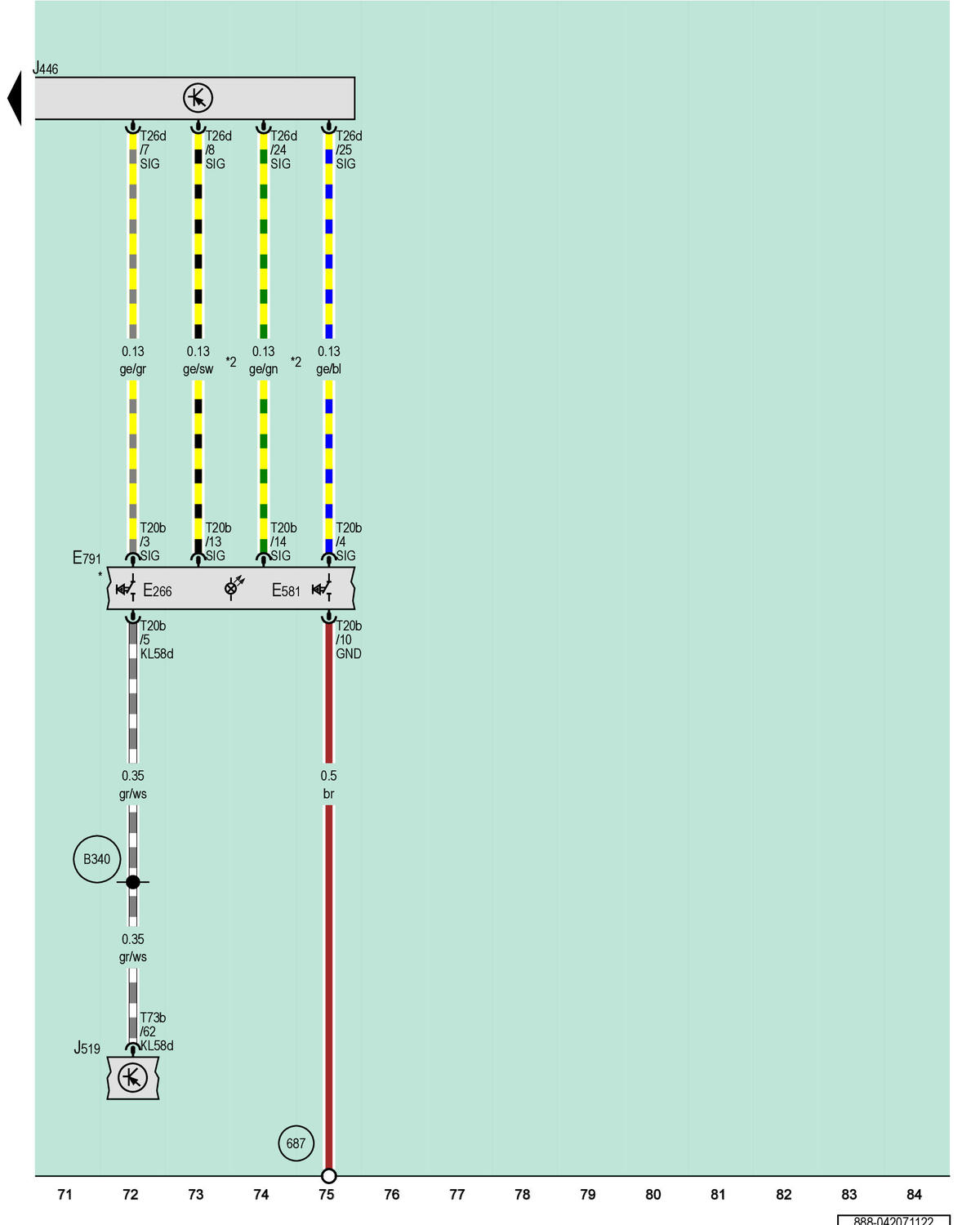

Control Unit 1 For Driving And Convenience Functions, Parking Aid Control Module, Vehicle Electrical System Control Module

Courtesy of AUDI OF AMERICA, LLC

E266

Parking Aid Button

E581

Parallel Parking Assistance Button

E791

Control Unit 1 for Driving and Convenience Functions

J446

Parking Aid Control Module

J519

Vehicle Electrical System Control Module

T20b

20-Pin Connector, Black

T26d

26-Pin Connector, Black

T73b

73-Pin Connector, Black

687

Ground Connection 1 on Center Tunnel

B340

Connection 58d (in Main Wiring Harness) 1

*

Refer to the Applicable Wiring Diagram for the Switch and Center Console

*2

Through November 2022
