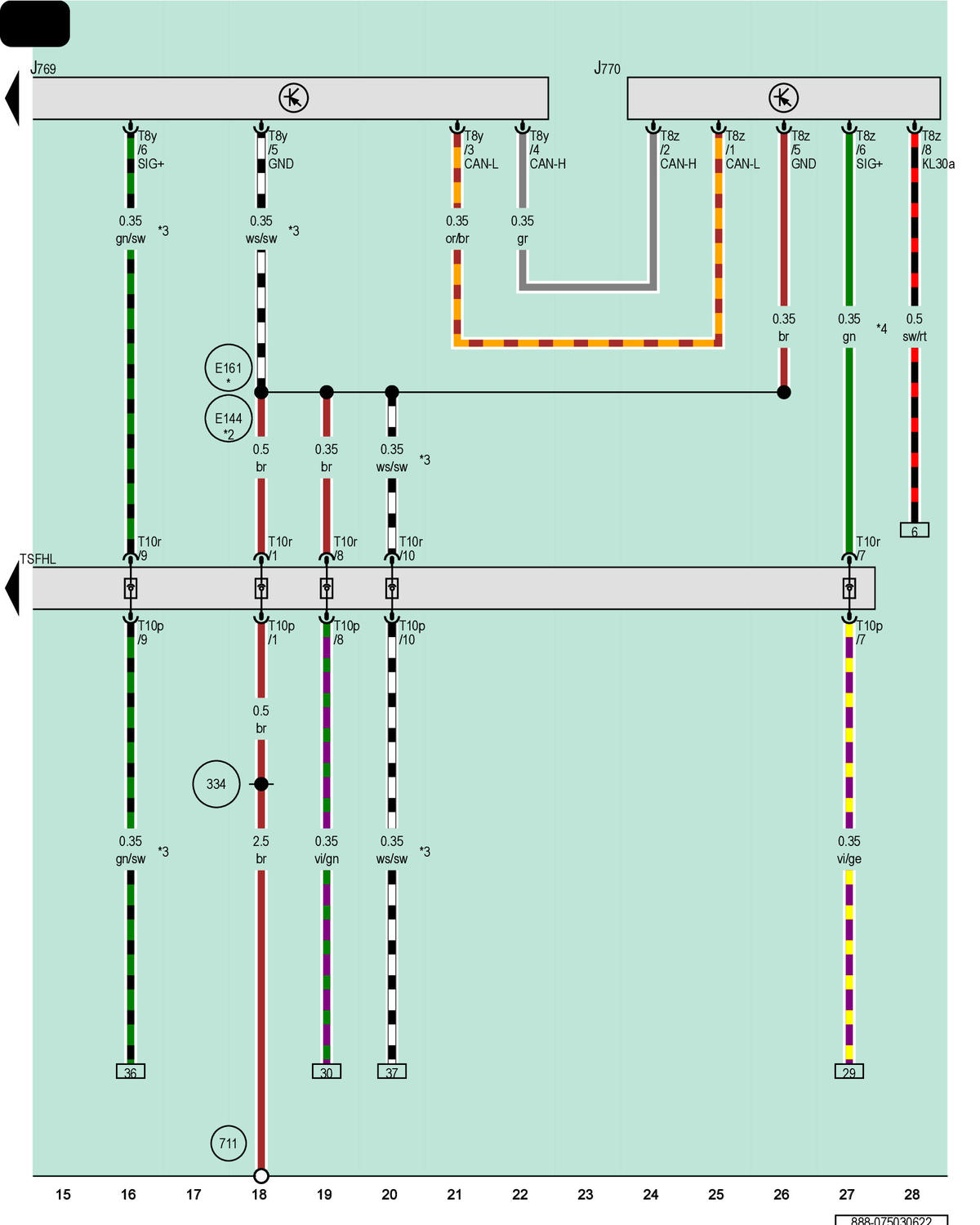

Lane Change Assistance Control Module, Lane Change Assistance Control Module 2

Courtesy of AUDI OF AMERICA, LLC

J769

Lane Change Assistance Control Module

J770

Lane Change Assistance Control Module 2

T8y

8-Pin Connector, Black

T8z

8-Pin Connector, Black

T10p

10-Pin Connector, Black

T10r

10-Pin Connector, Black

TSFHL

Coupling Point on Left Rear Bumper

334

Ground Connection 6 (in Rear Wiring Harness)

711

Ground Connection 3 on Left Rear Chassis Side Member

E144

Connection 1 (CAN Bus Extended Low) (in Rear Bumper Wiring Harness)

E161

Connection (Powertrain CAN Bus High) (in Rear Bumper Wiring Harness)

*

Sportback

*2

Sedan

*3

The Color of the Wires Depends on Vehicle Equipment

*4

For Vehicles Without Parallel Parking Assistance
