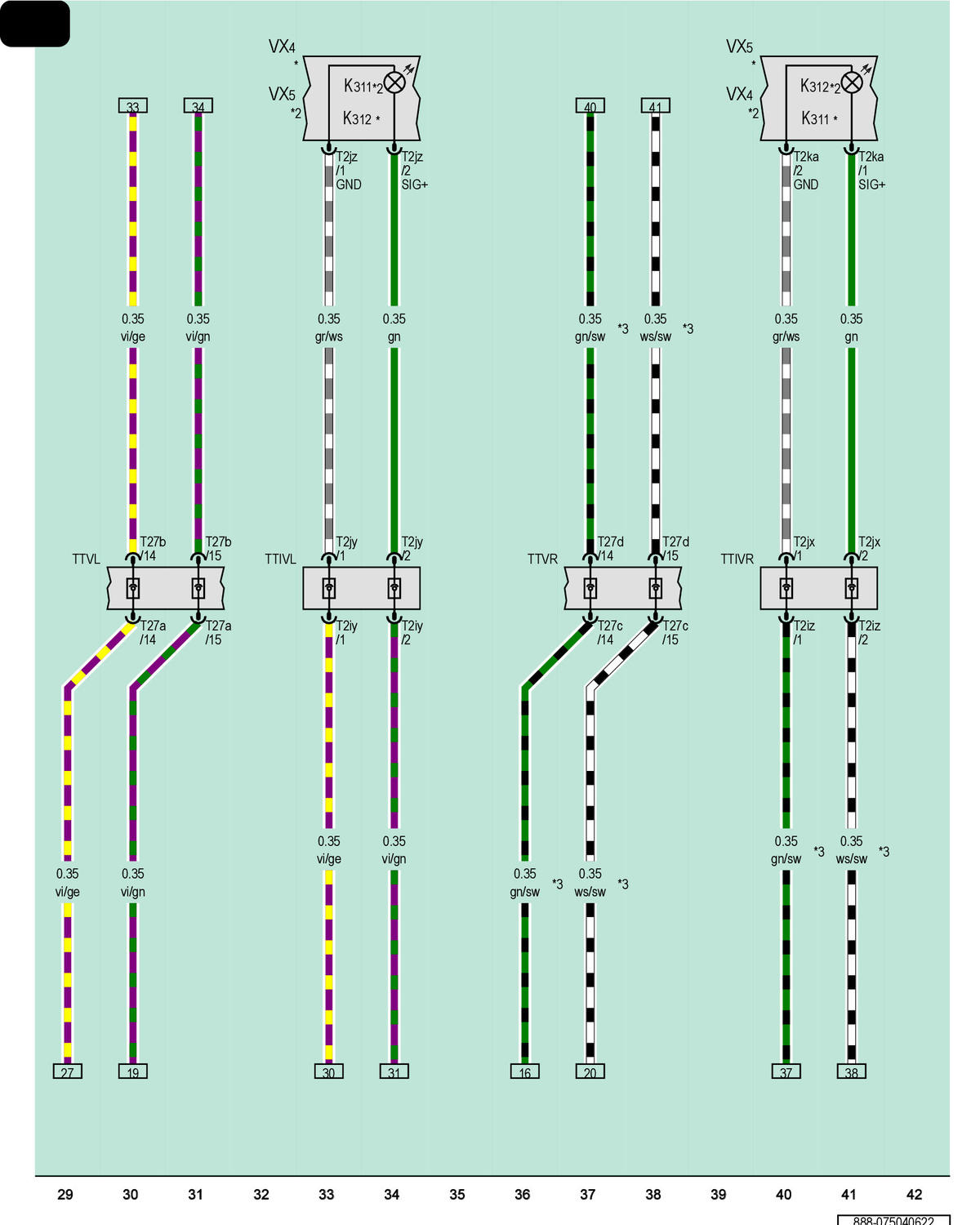

Driver Exterior Rearview Mirror, Front Passenger Exterior Rearview Mirror

Courtesy of AUDI OF AMERICA, LLC

K311

Lane Change Assistance Warning Lamp in Right Exterior Rearview Mirror

K312

Lane Change Assistance Warning Lamp in Left Exterior Rearview Mirror

T2iy

2-Pin Connector, Black

T2iz

2-Pin Connector, Black

T2jx

2-Pin Connector, Black

T2jy

2-Pin Connector, Black

T2jz

2-Pin Connector, Black

T2ka

2-Pin Connector, Black

T27a

27-Pin Connector, Black

T27b

27-Pin Connector, Black

T27c

27-Pin Connector, Black

T27d

27-Pin Connector, Black

TTIVL

Coupling Point in Left Front Door

TTIVR

Coupling Point in Right Front Door

TTVL

Left Front Door Coupling Point

TTVR

Right Front Door Coupling Point

VX4

Driver Exterior Rearview Mirror

VX5

Front Passenger Exterior Rearview Mirror

*

For LHD Vehicles

*2

For RHD Vehicles

*3

The Color of the Wires Depends on Vehicle Equipment
