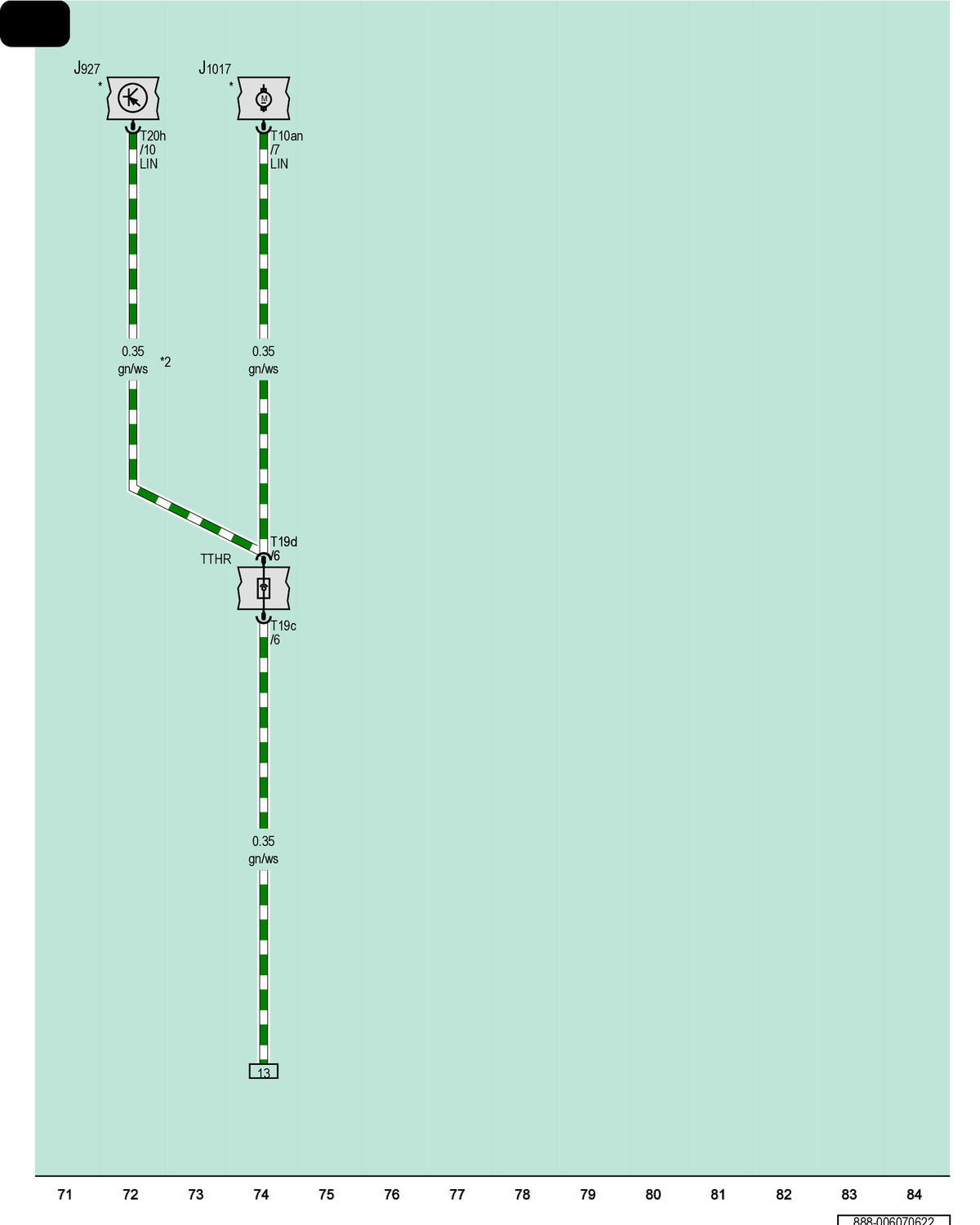

Passenger Side Rear Door Control Module, Passenger Side Rear Window Regulator Motor Control Module

Courtesy of AUDI OF AMERICA, LLC

J927

Passenger Side Rear Door Control Module

J1017

Passenger Side Rear Window Regulator Motor Control Module

T10an

10-Pin Connector, Black

T19c

19-Pin Connector, Black

T19d

19-Pin Connector, Black

T20h

20-Pin Connector, White

TTHR

Right Rear Door Coupling Point

*

Refer to Applicable Convenience System Wiring Diagram

*2

For Vehicles with Right Rear Door Control Module
