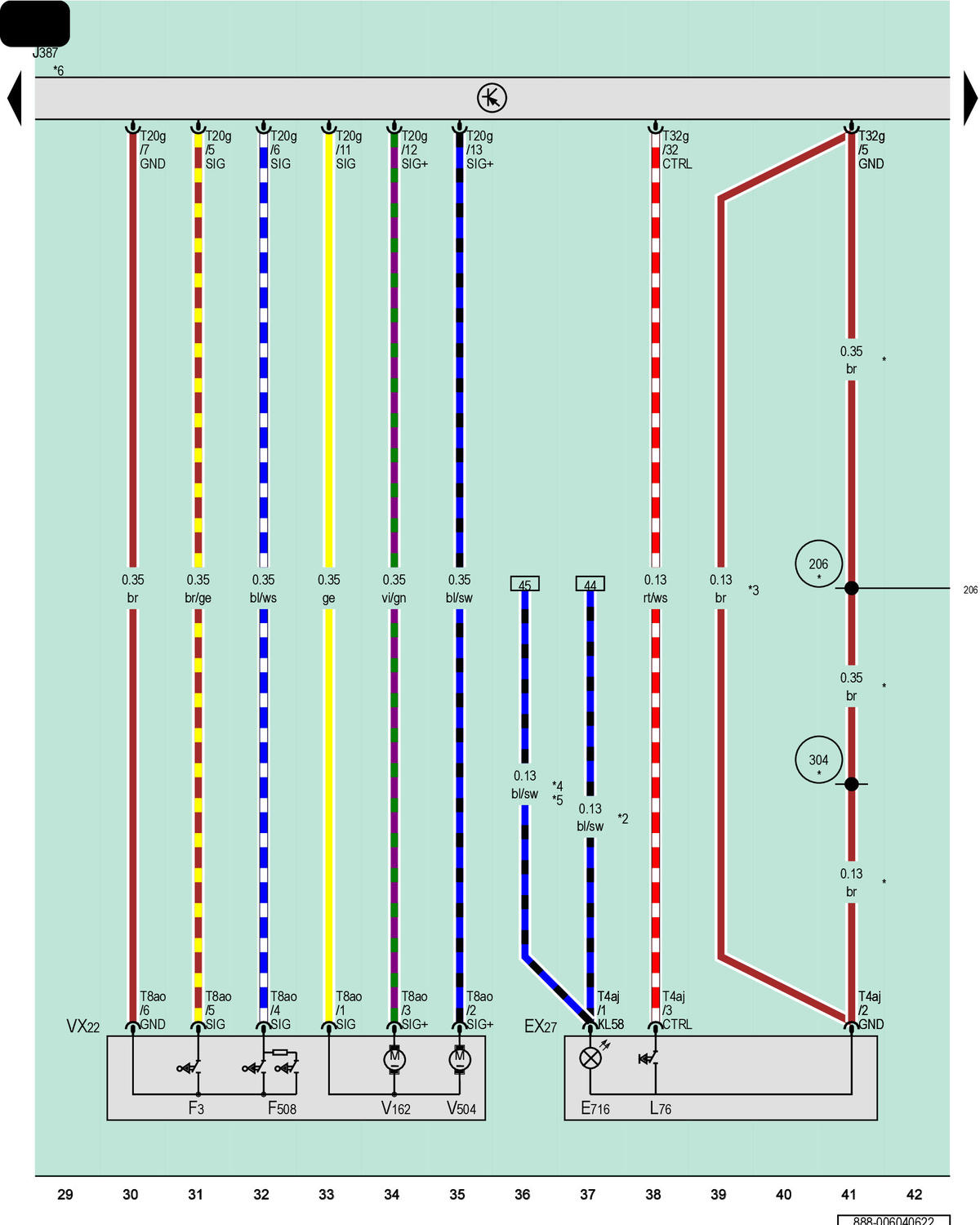

Front Passenger Door Power Window Switch, Front Passenger Door Control Module, Front Passenger Door Lock Unit

Courtesy of AUDI OF AMERICA, LLC

EX27

Front Passenger Door Power Window Switch

E716

Front Passenger Power Window Button

Front Passenger Door Contact Switch

F508

Passenger Side Central Locking System Actuator

J387

Front Passenger Door Control Module

L76

Push Button Illumination Bulb

T4aj

4-Pin Connector, Brown

T8ao

8-Pin Connector, Black

T20g

20-Pin Connector, White

T32g

32-Pin Connector, Blue

VX22

Front Passenger Door Lock Unit

V162

Front Passenger Central Locking -Safe- Motor

V504

Front Passenger Side Central Locking Motor

206

Ground Connection (in Front Passenger Door Wiring Harness)

304

Ground Connection 3 (in Front Passenger Door Wiring Harness)

For Vehicles with Ambient Lighting

Not for USA

For Vehicles Without Ambient Lighting

For USA Only

From June 2021

Refer to Applicable Wiring Diagram for Interior Lamps
