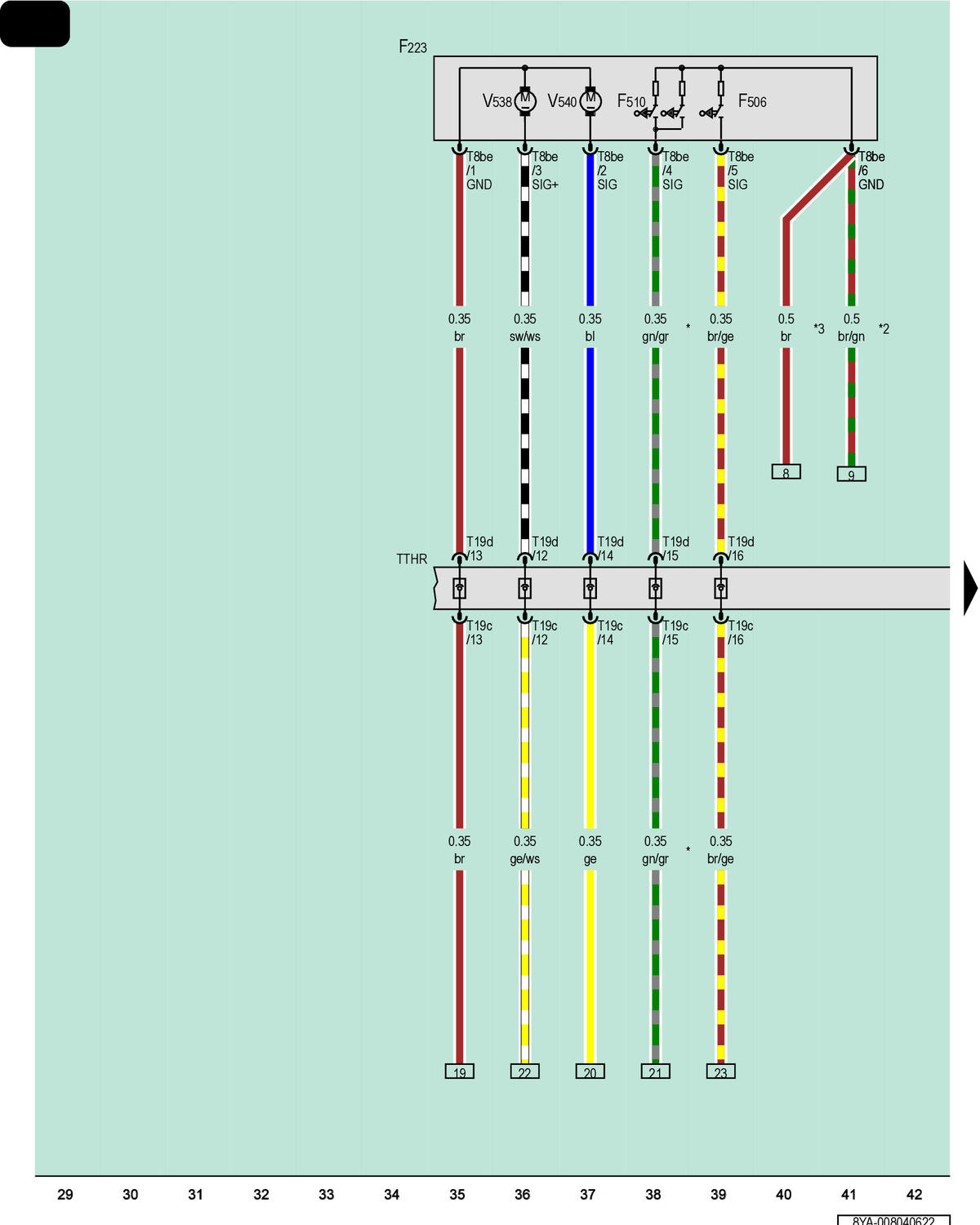

Right Rear Central Locking Lock Unit

Courtesy of AUDI OF AMERICA, LLC

F223

Right Rear Central Locking Lock Unit

F506

Passenger Side Rear Door Contact Switch

F510

Passenger Side Rear Central Locking System Actuator

T8be

8-Pin Connector, Black

T19c

19-Pin Connector, Black

T19d

19-Pin Connector, Black

TTHR

Right Rear Door Coupling Point

V538

Passenger Side Rear Door Central Locking -Safe- Motor

V540

Passenger Side Rear Central Locking System Motor

*

Different Wire Color Possible

*2

Through June 2021

*3

From June 2021
